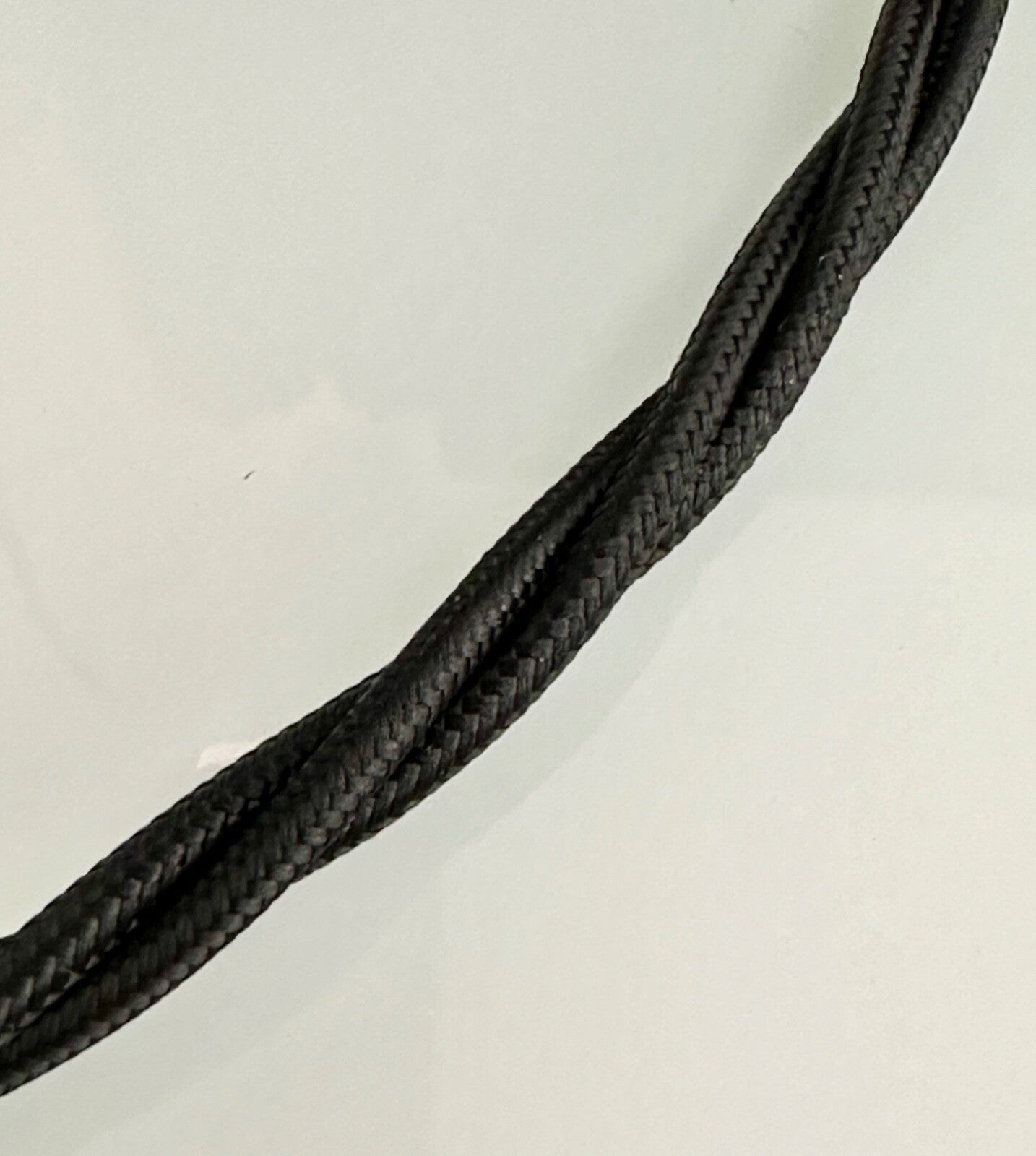

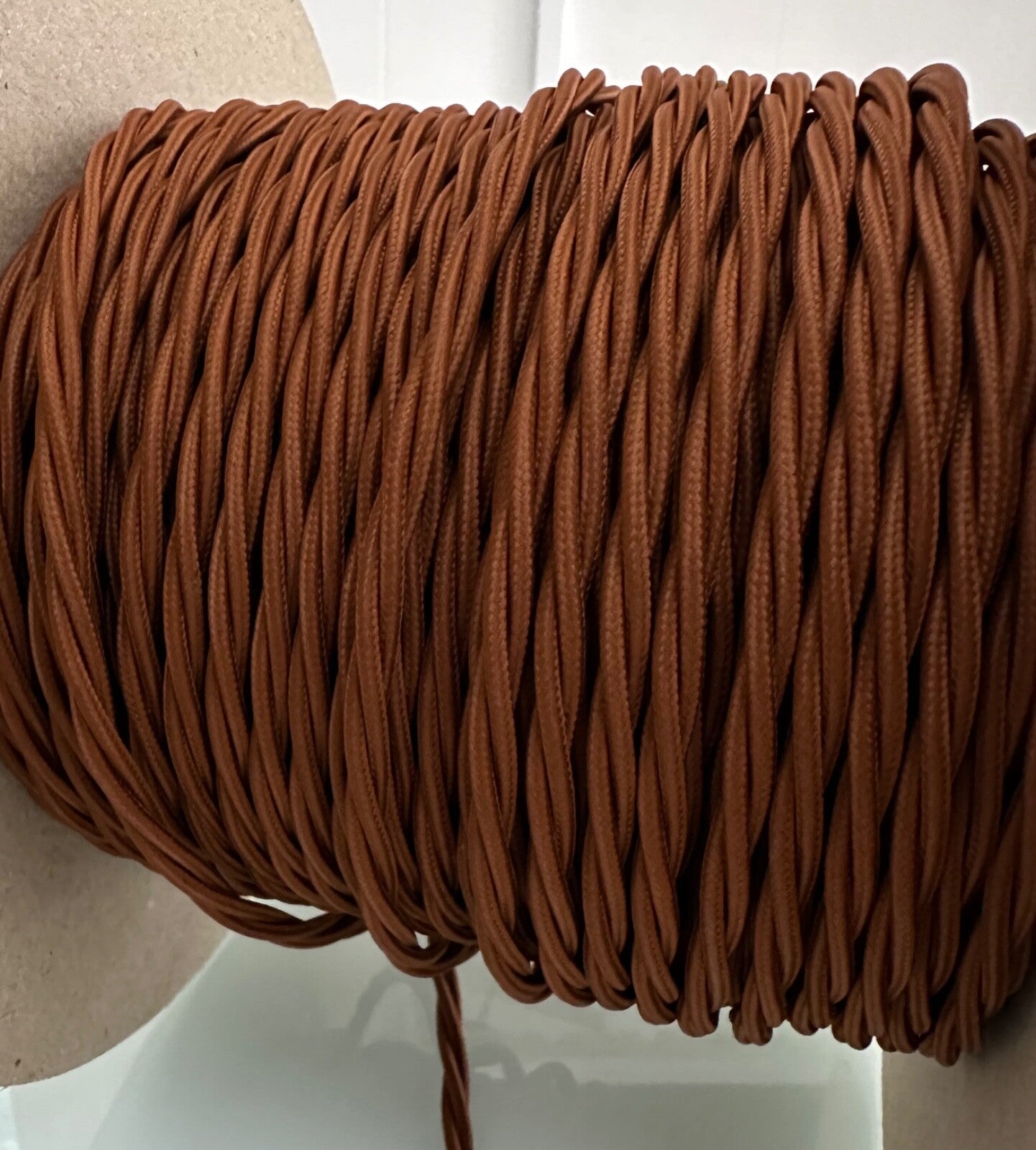

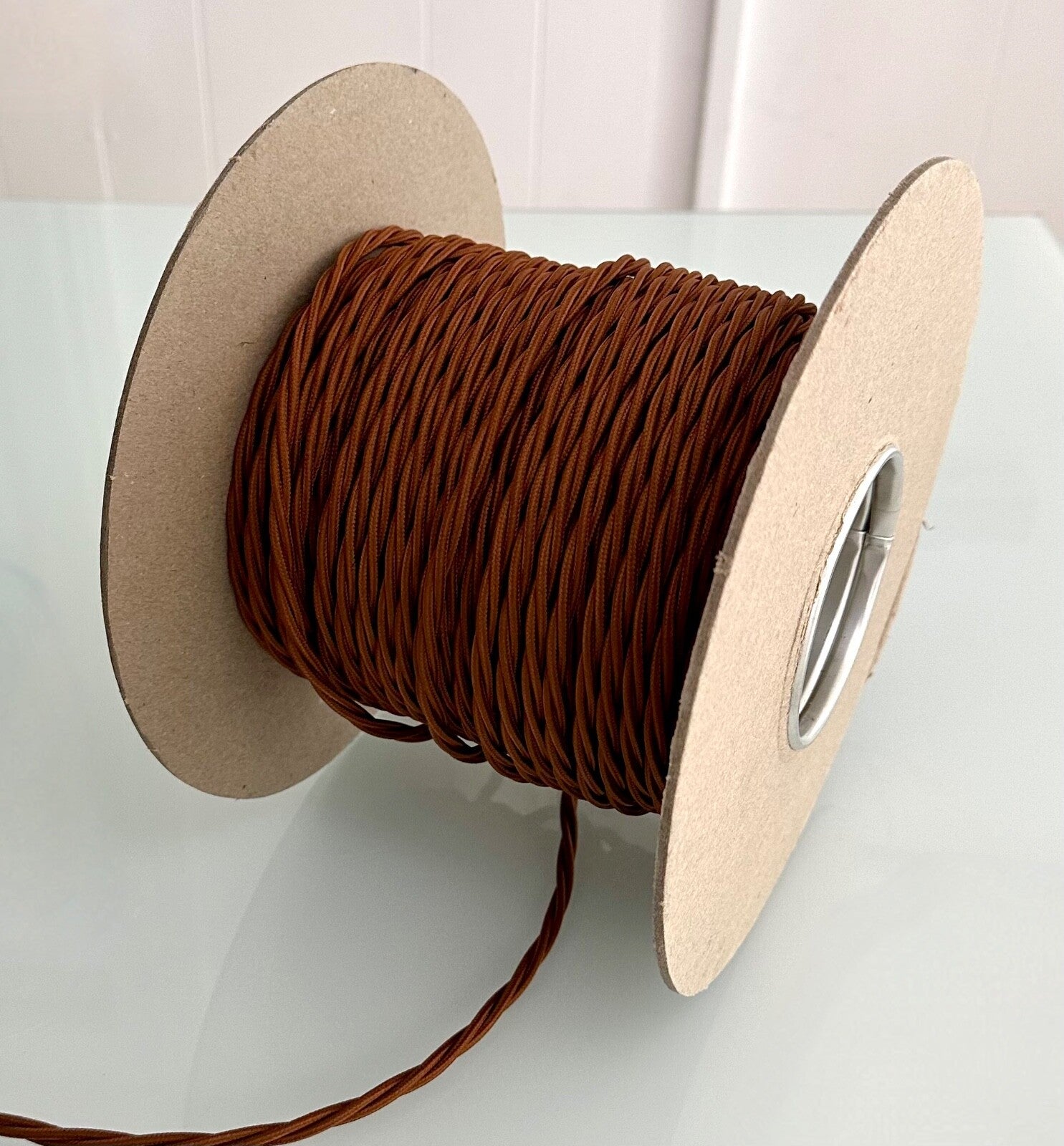

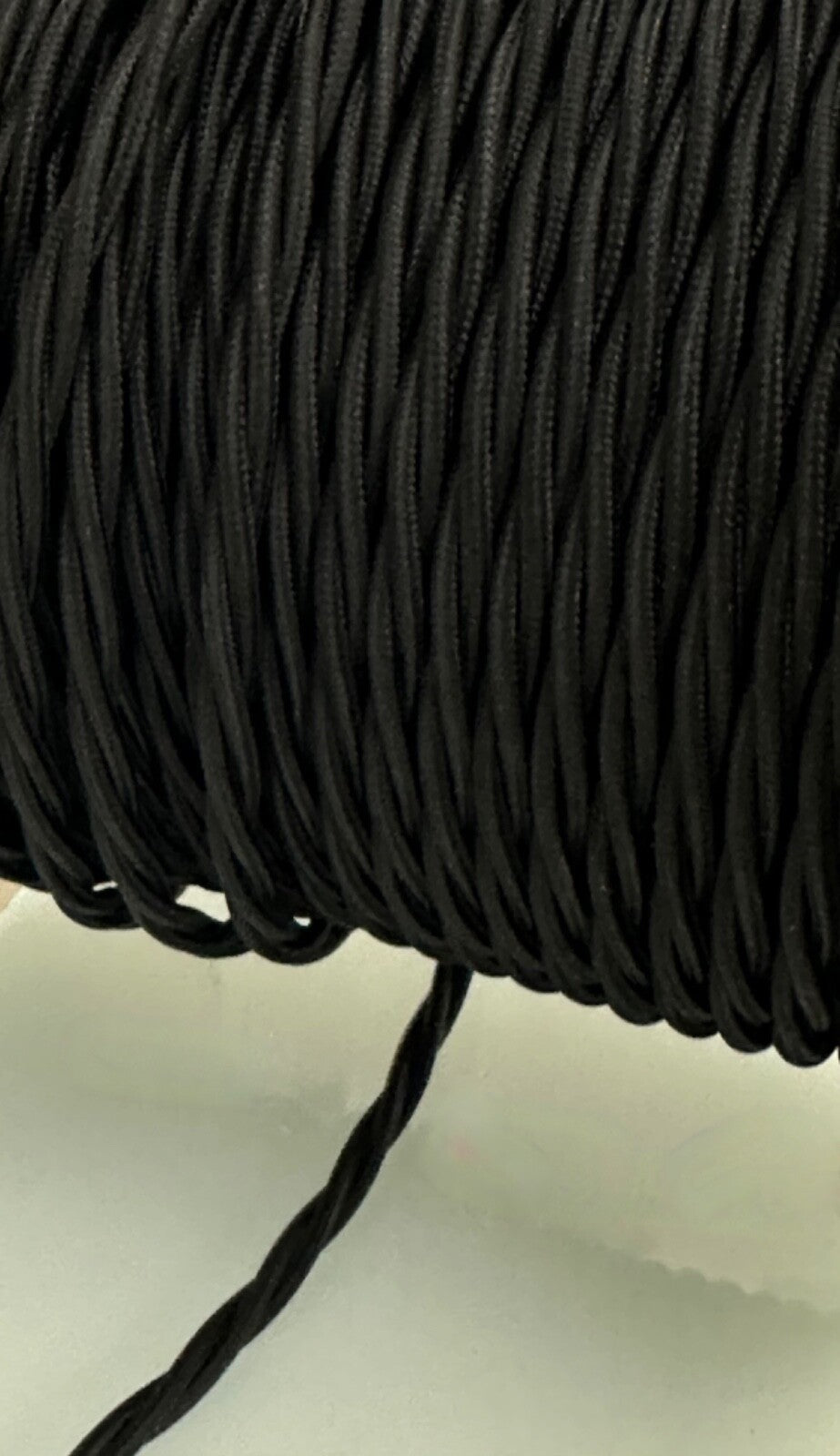

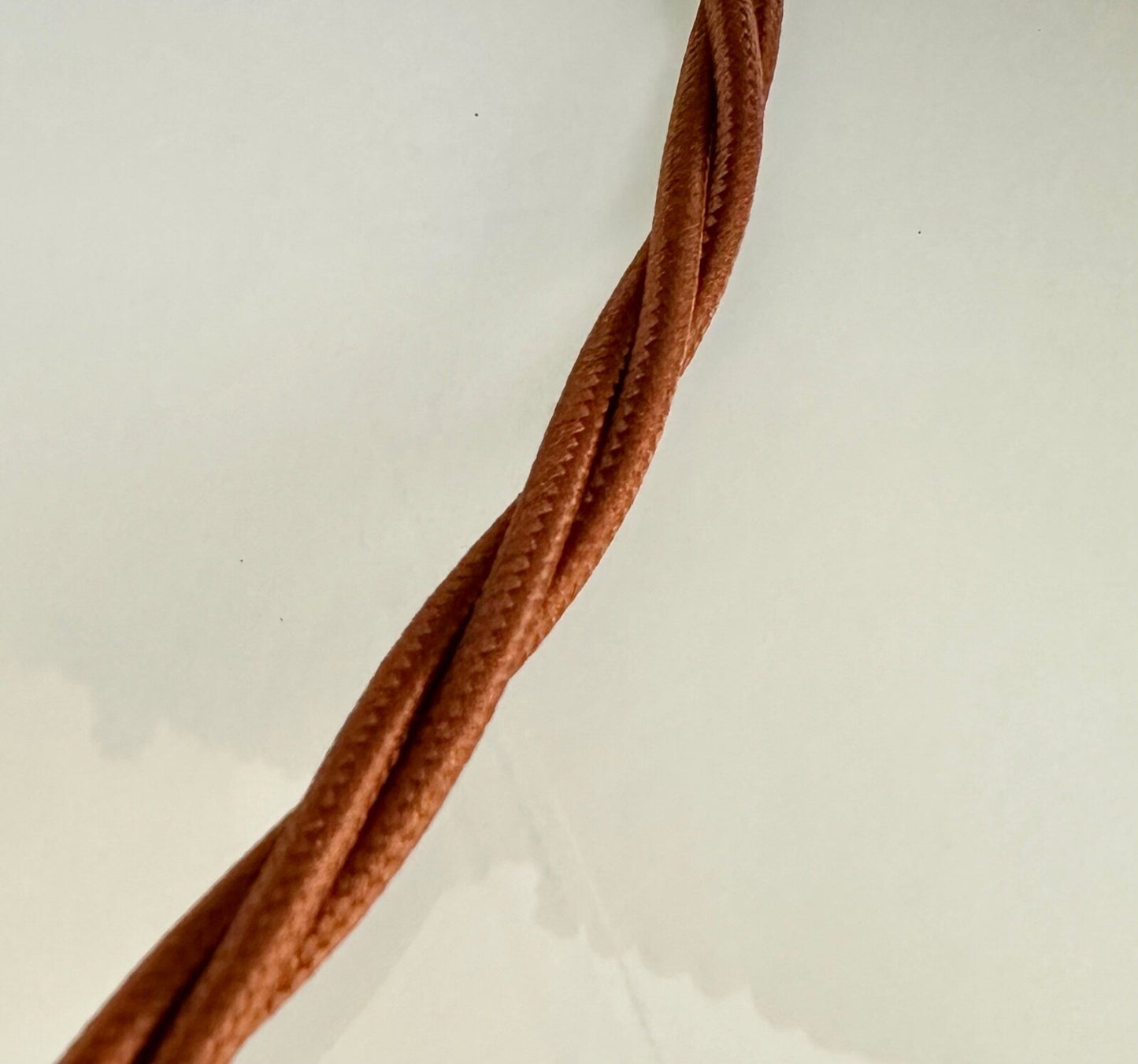

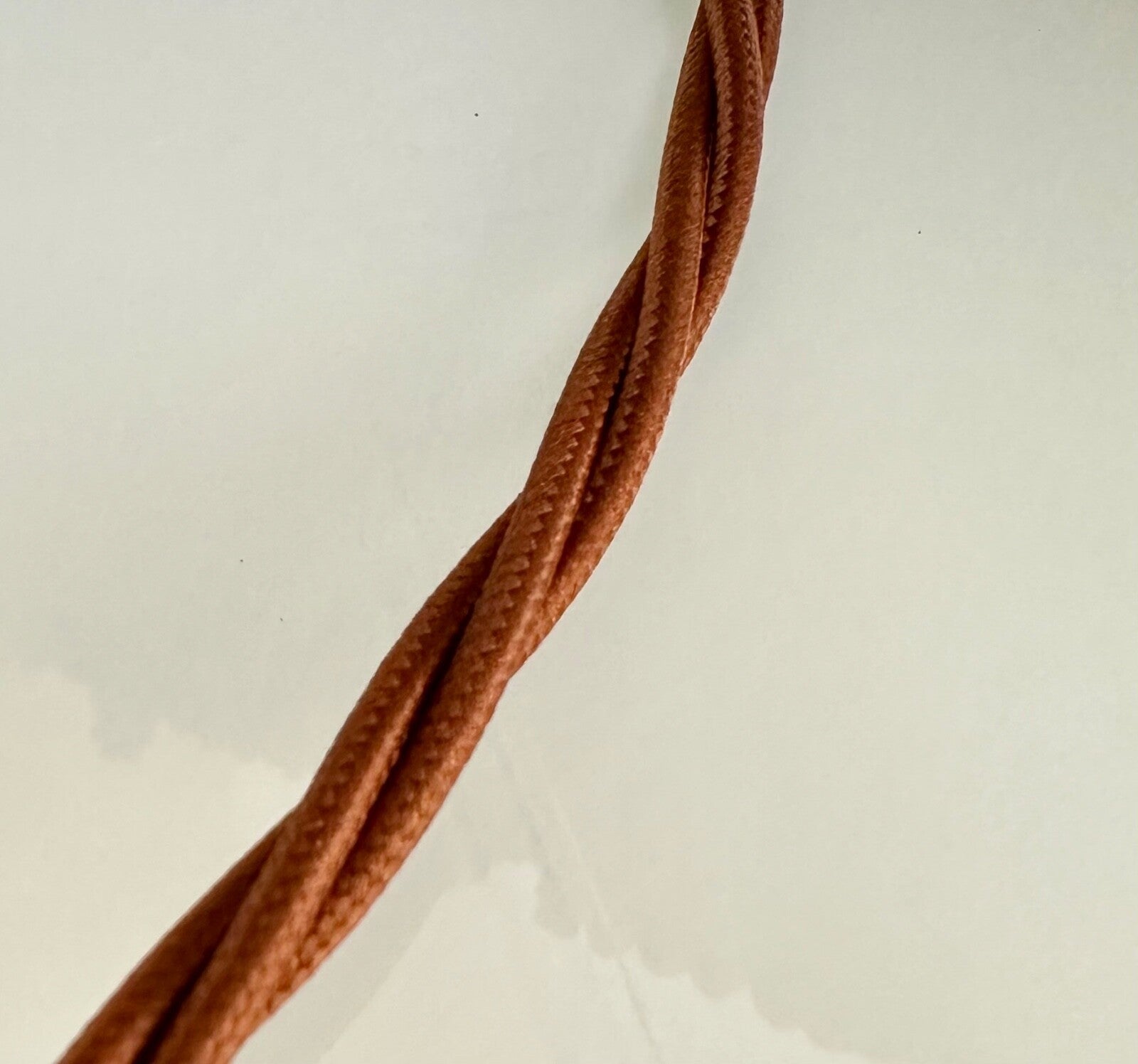

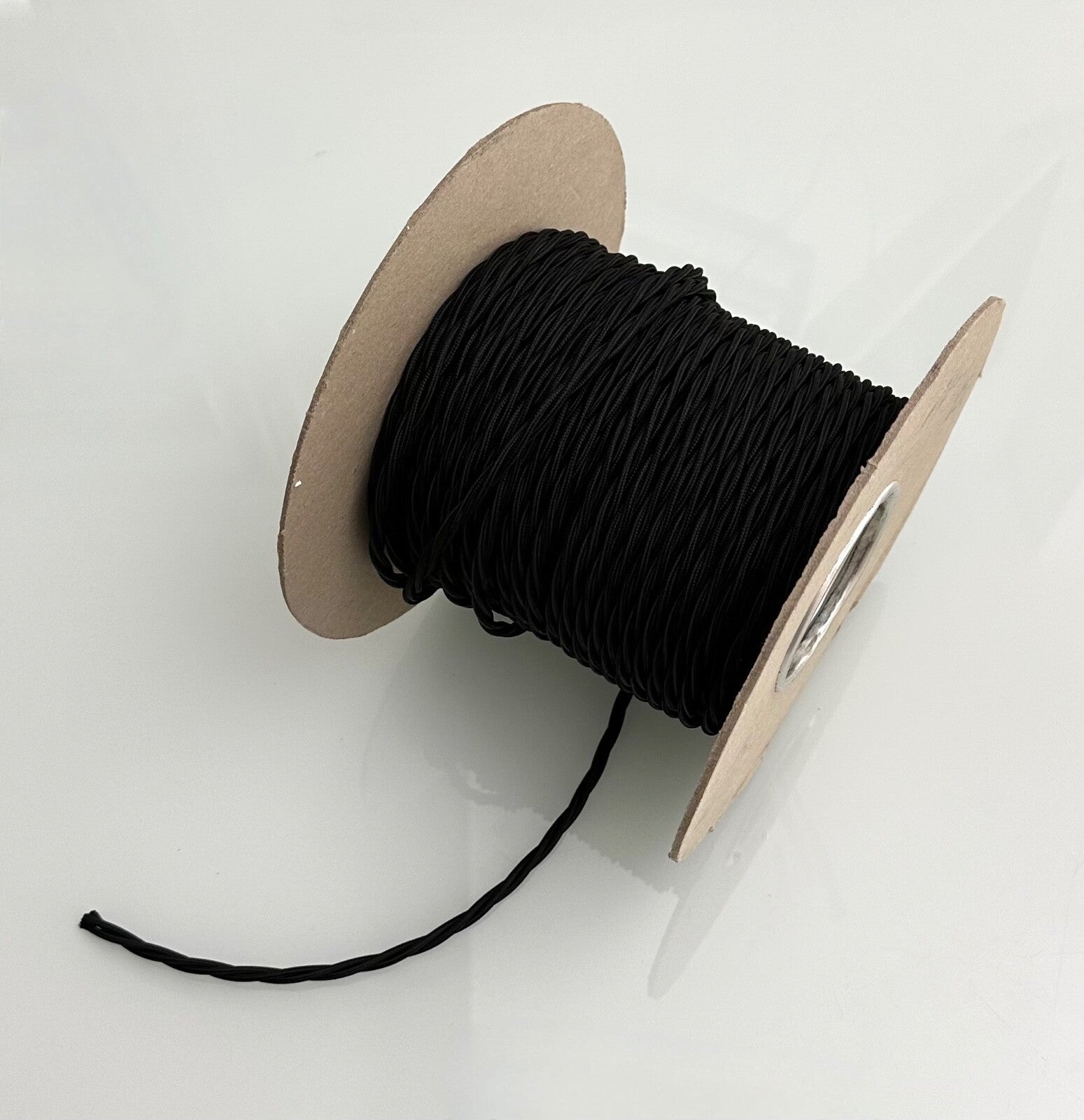

UK made 3core 0.75sq mm twisted braided electric cable flex lighting per metre

UK made 3core 0.75sq mm twisted braided electric cable flex lighting per metre

£6.25 GBP
£0.00 GBP £6.25 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colour
British-made 3-core braided double insulated twisted electrical flex which confirms to all required UK and EU electrical standards (full specifications below).  This vintage style silky fabric covered twisted cable works very well with period or vintage and retro lighting, and is suitable for ceiling lights, desk lamps, bedside lights and any other indoor lights for wiring into the ceiling or adding a plug for wall sockets.   Price is per metre.  To alter the number of metres required, change the quantity before checking out.

Product Specification BTPP-403

Description Value
Rated Voltage: 300 Vac
Test Voltage: 2500 Vac
Temperature Range: -20 °C ÷ 90 °C
Short Circuit Temperature: 160 °C
Minimum Bending Radius: 10 x Overall Diameter
Conductor Size: 3 x 0.75 mm2
Conductor Stranding: 19 x 0.224 mm
Electrical Resistance : ≤ 26.7 [Ω/km]
First Insulation Thickness: ≥0.25 mm
Second Insulation Thickness: ≥0.30 mm
Outer Diameter: 5.3 ± 0.5 mm
Product Code: BTPP-403

Cable Standards:
Low Voltage European Directive No. 2014/35/UE.

Stranding of Conductor:
Class 5 electrolytic tinned flexible copper conductor, conforming to IEC 60228 requirements.

Inner Insulation:
TI2 type PVC conforming to EN 50363-3 requirements, hardness: (92 + 2) Sh-A.

Outer Insulation:
Transparent TI3 type PVC conforming to EN 50363-3 requirements, hardness:(87 + 2) Sh-A. The outer covering will not be separable from the inner insulation.

Cable Assembly:
The cores are braided in viscose rayon before being twisted together.

Core Identification:
3 Core: Brown , Blue and Green/Yellow
