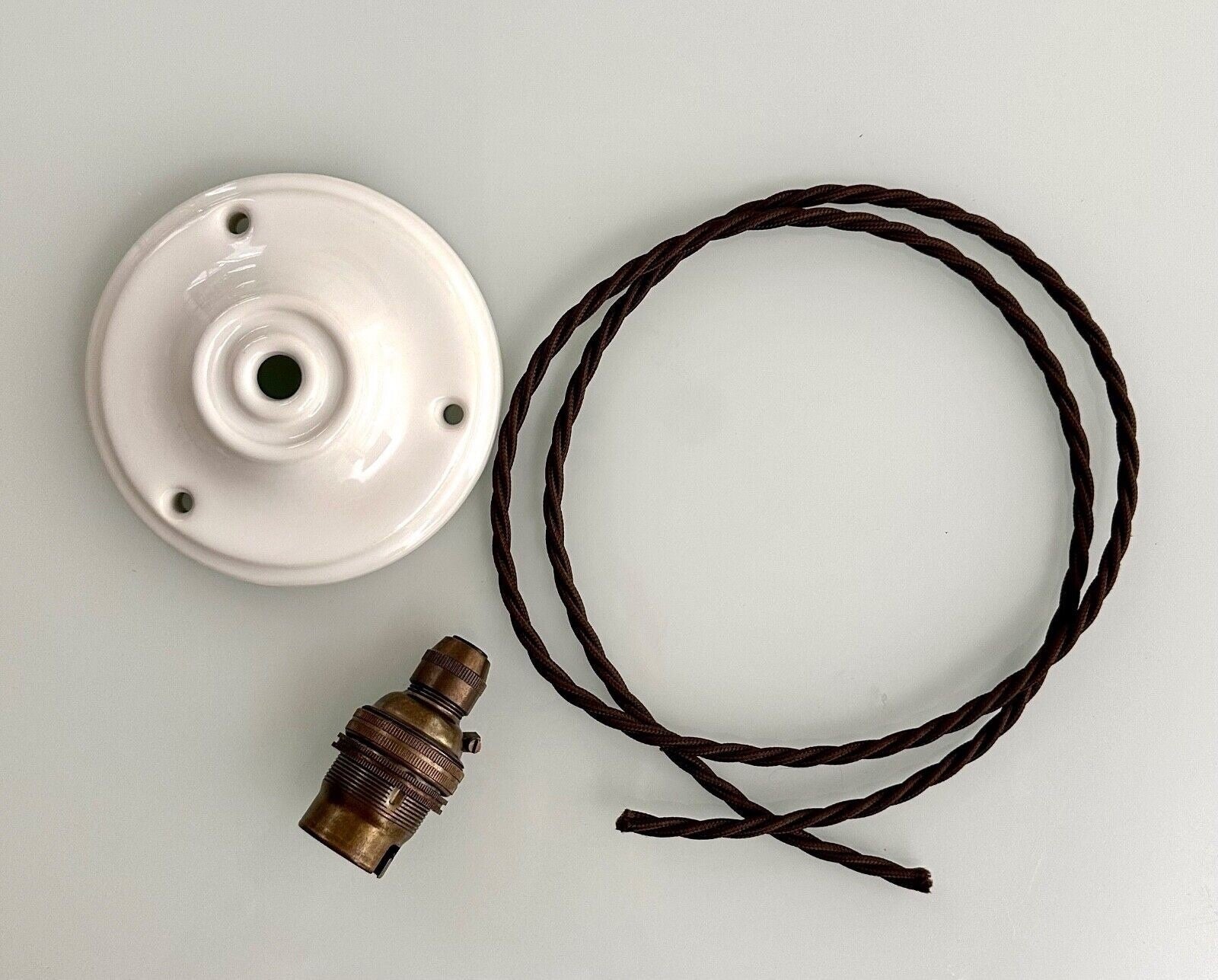

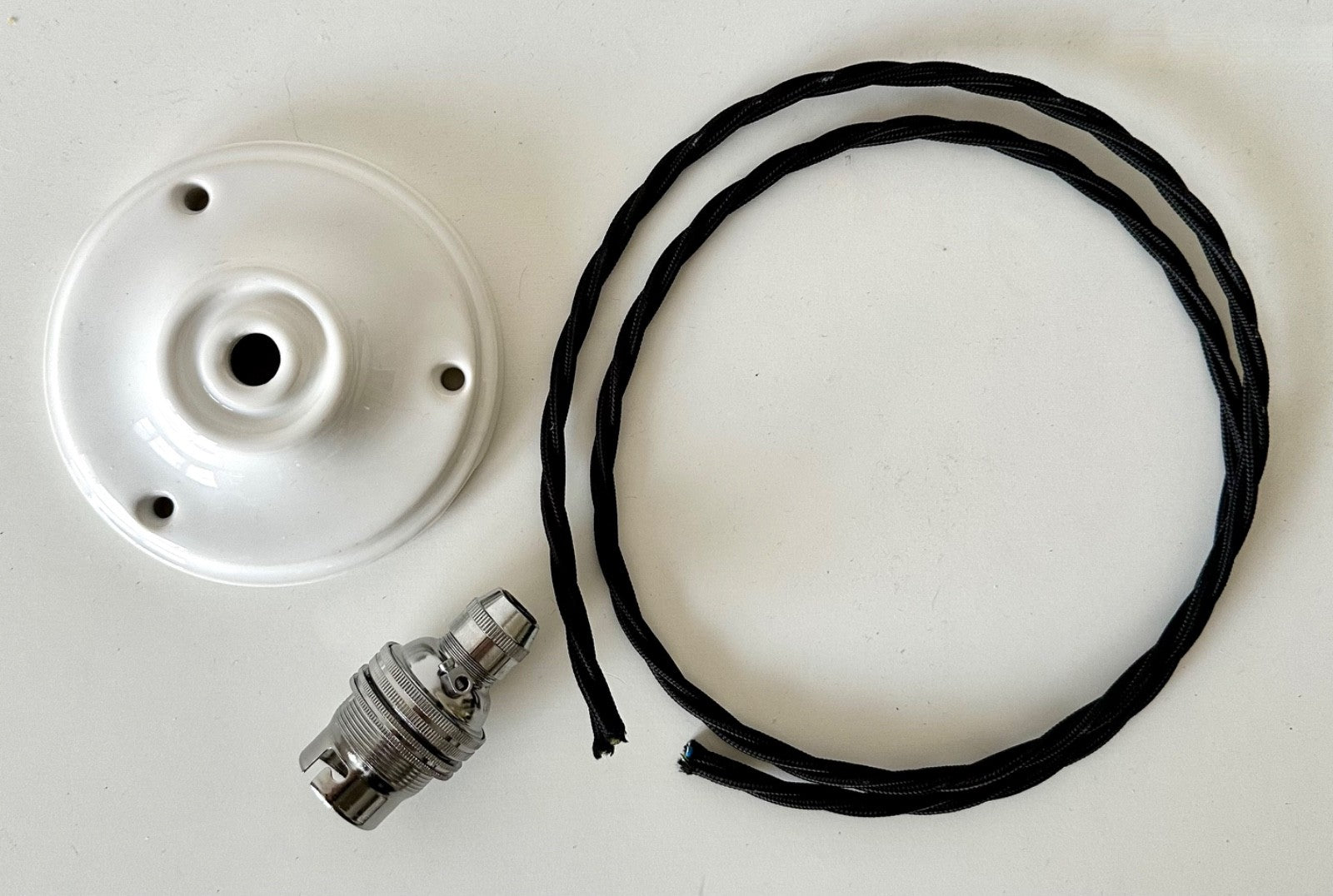

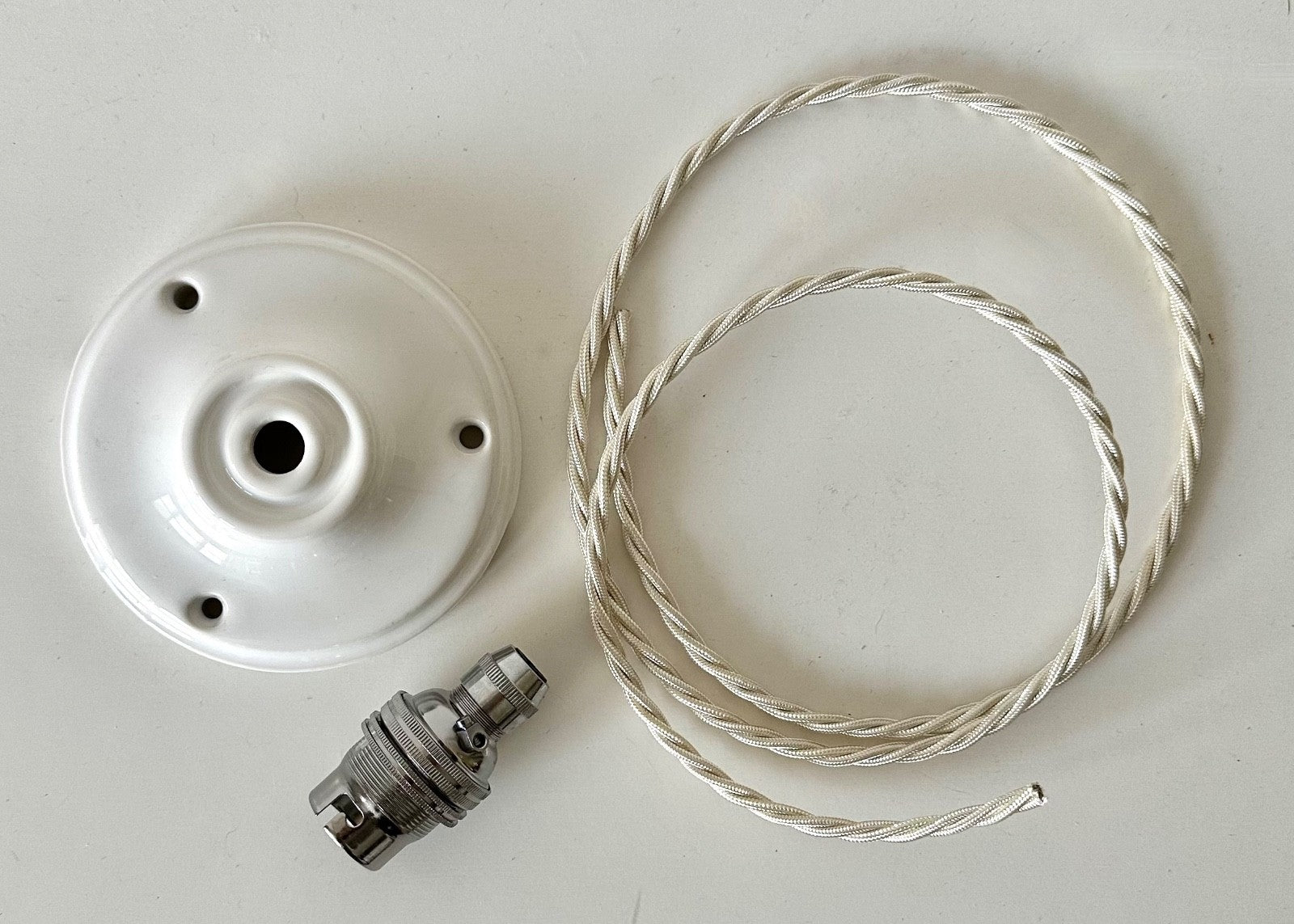

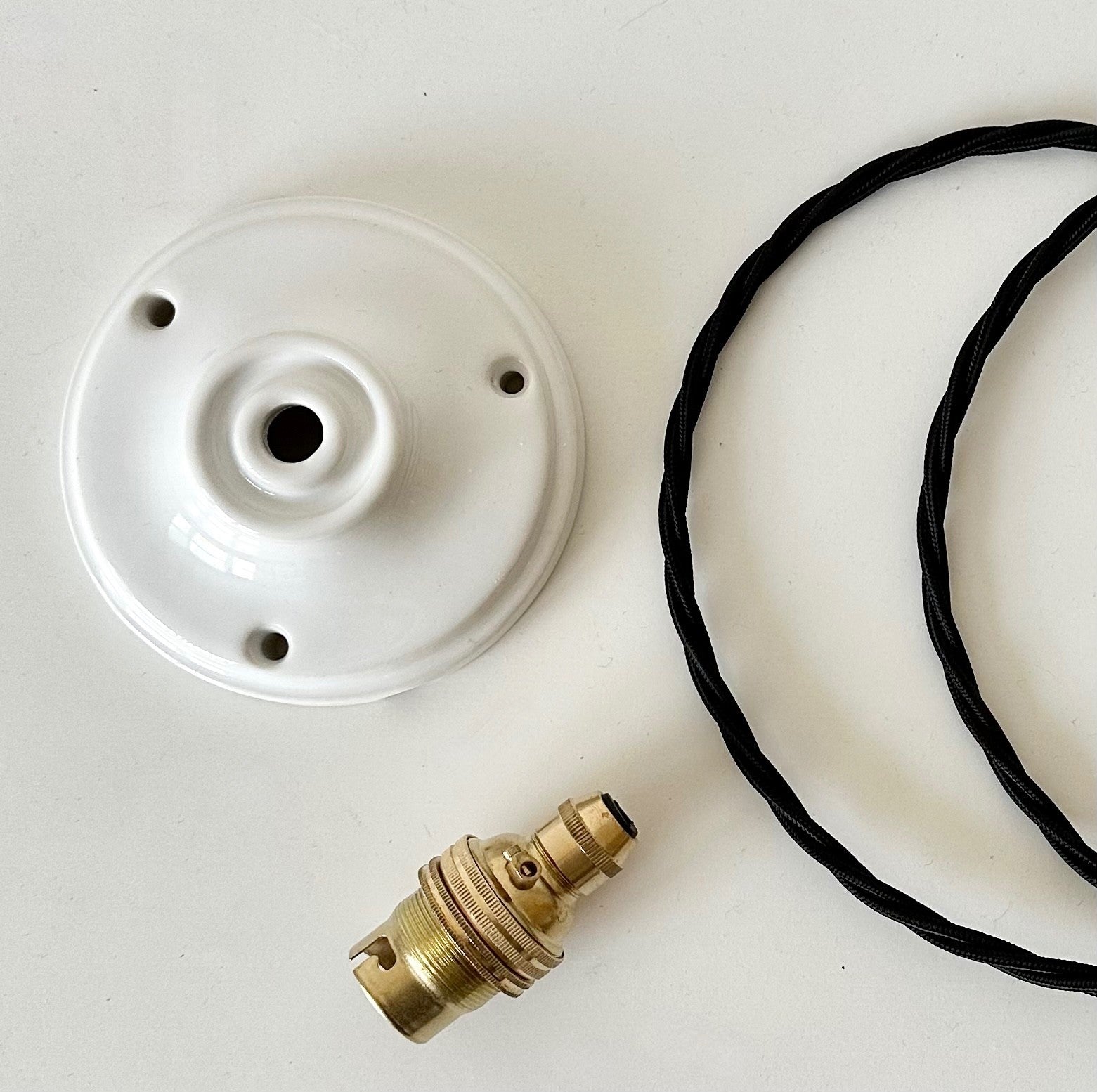

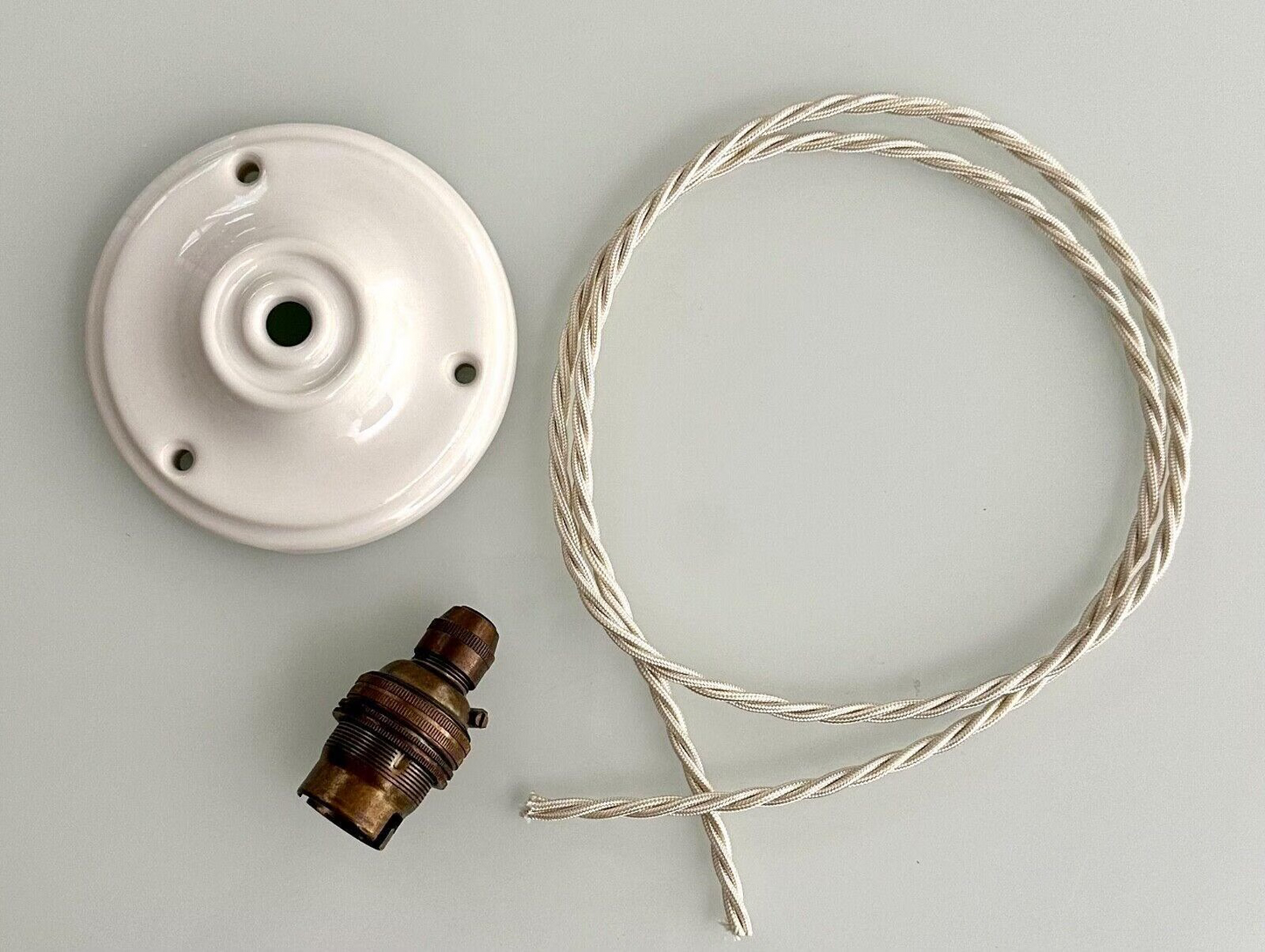

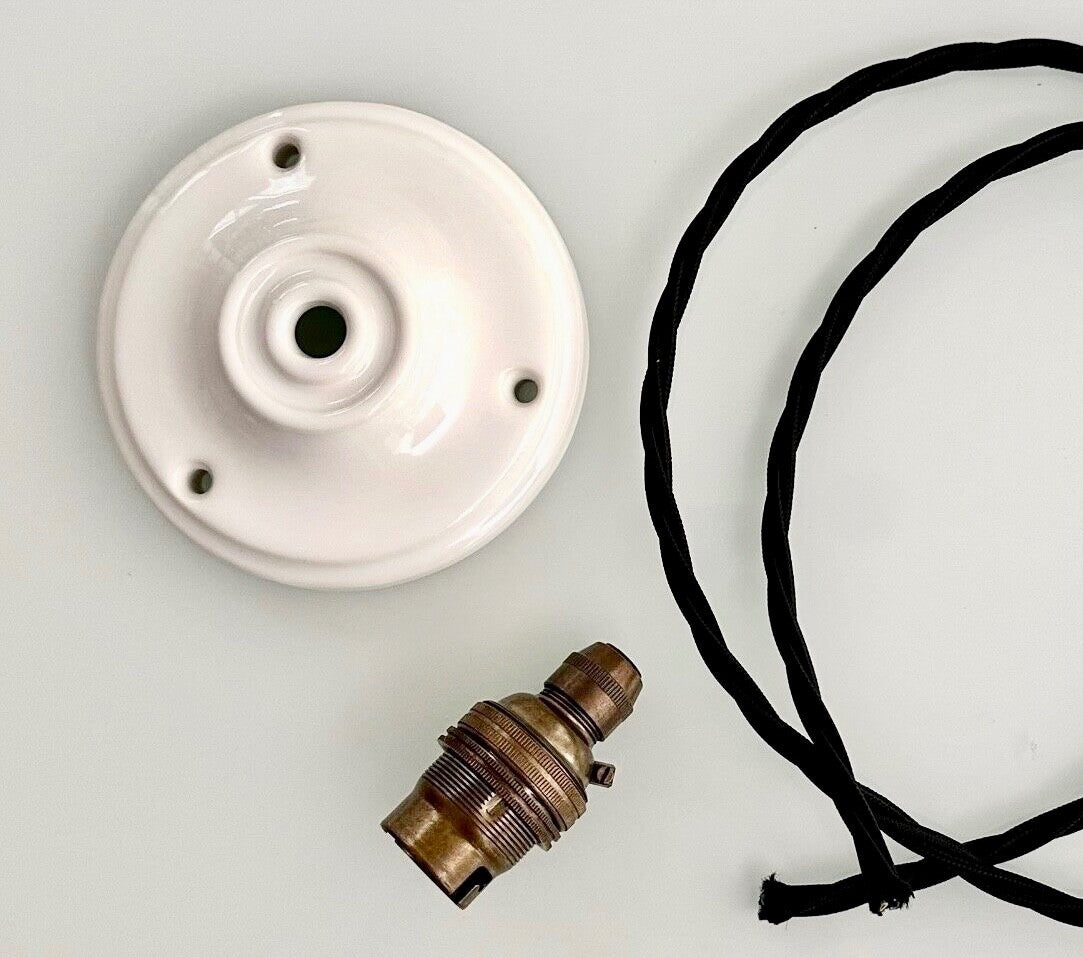

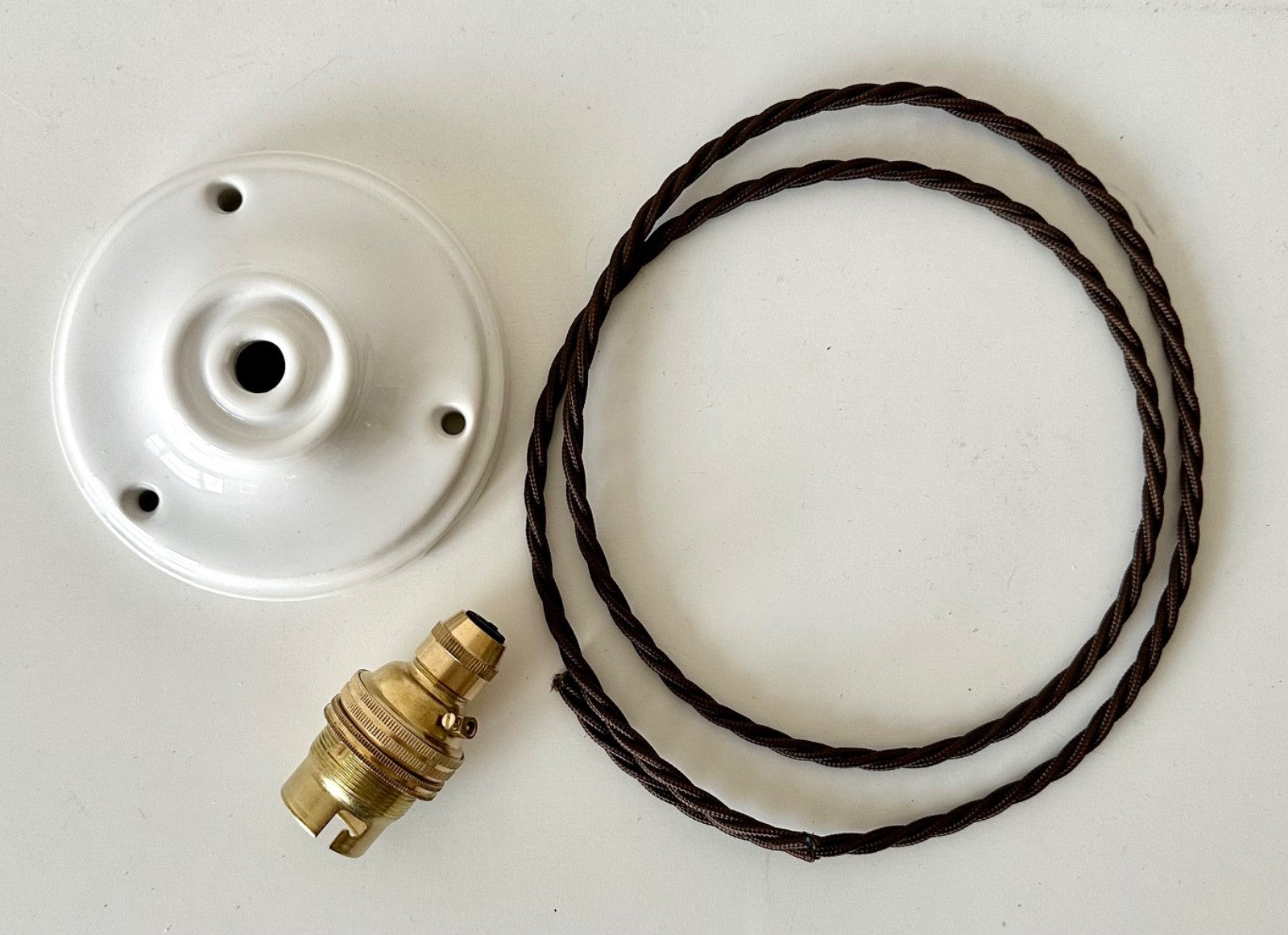

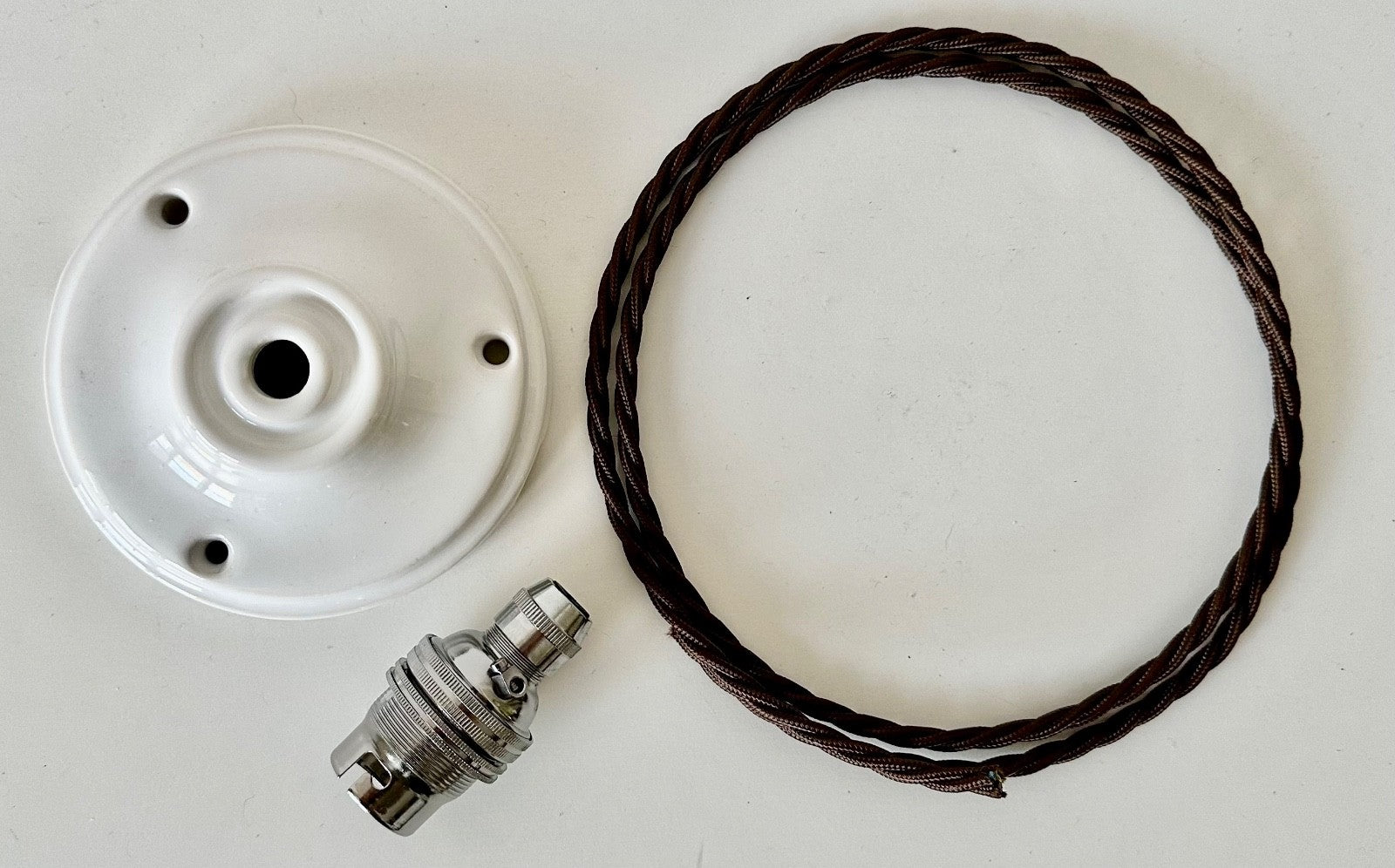

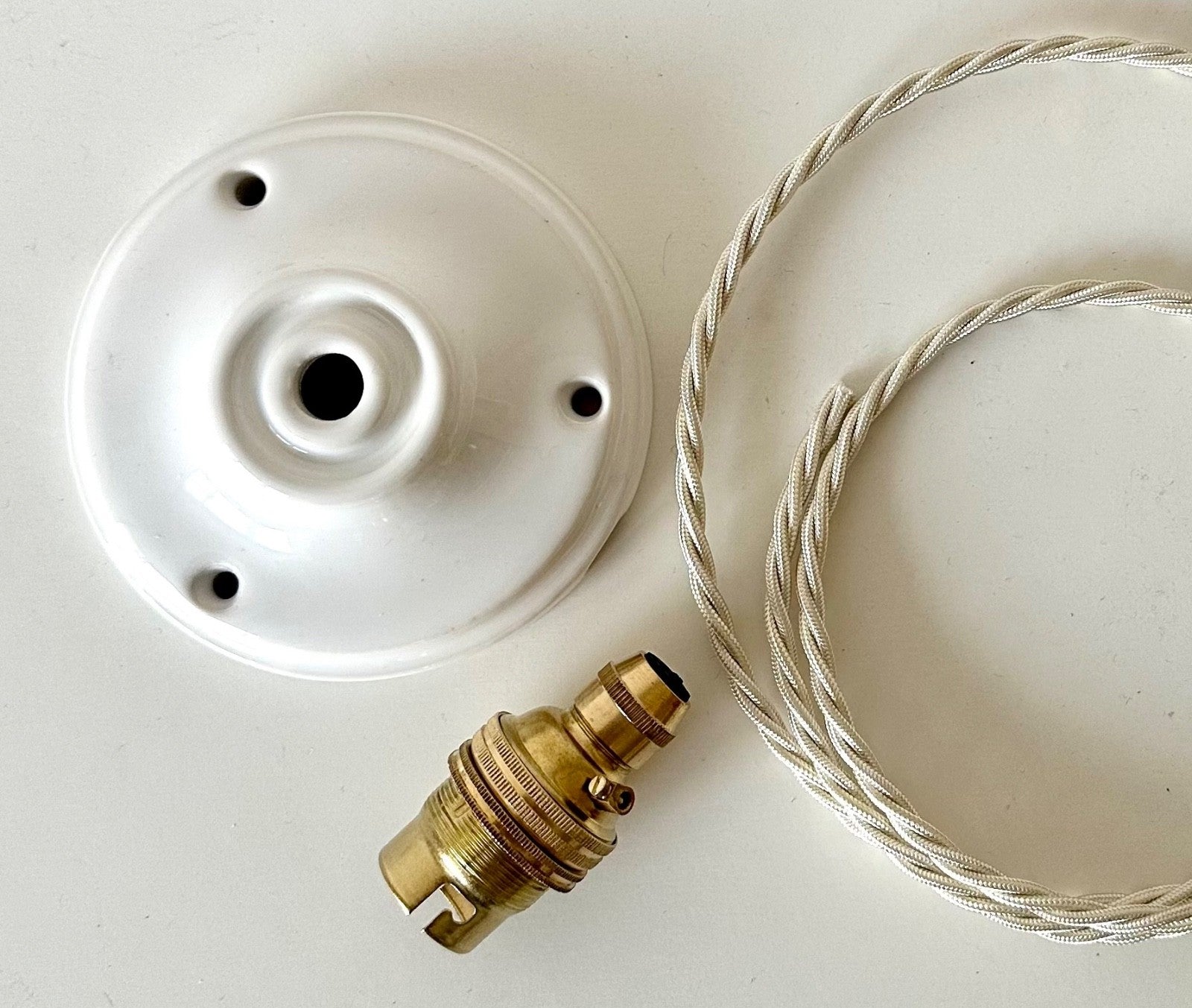

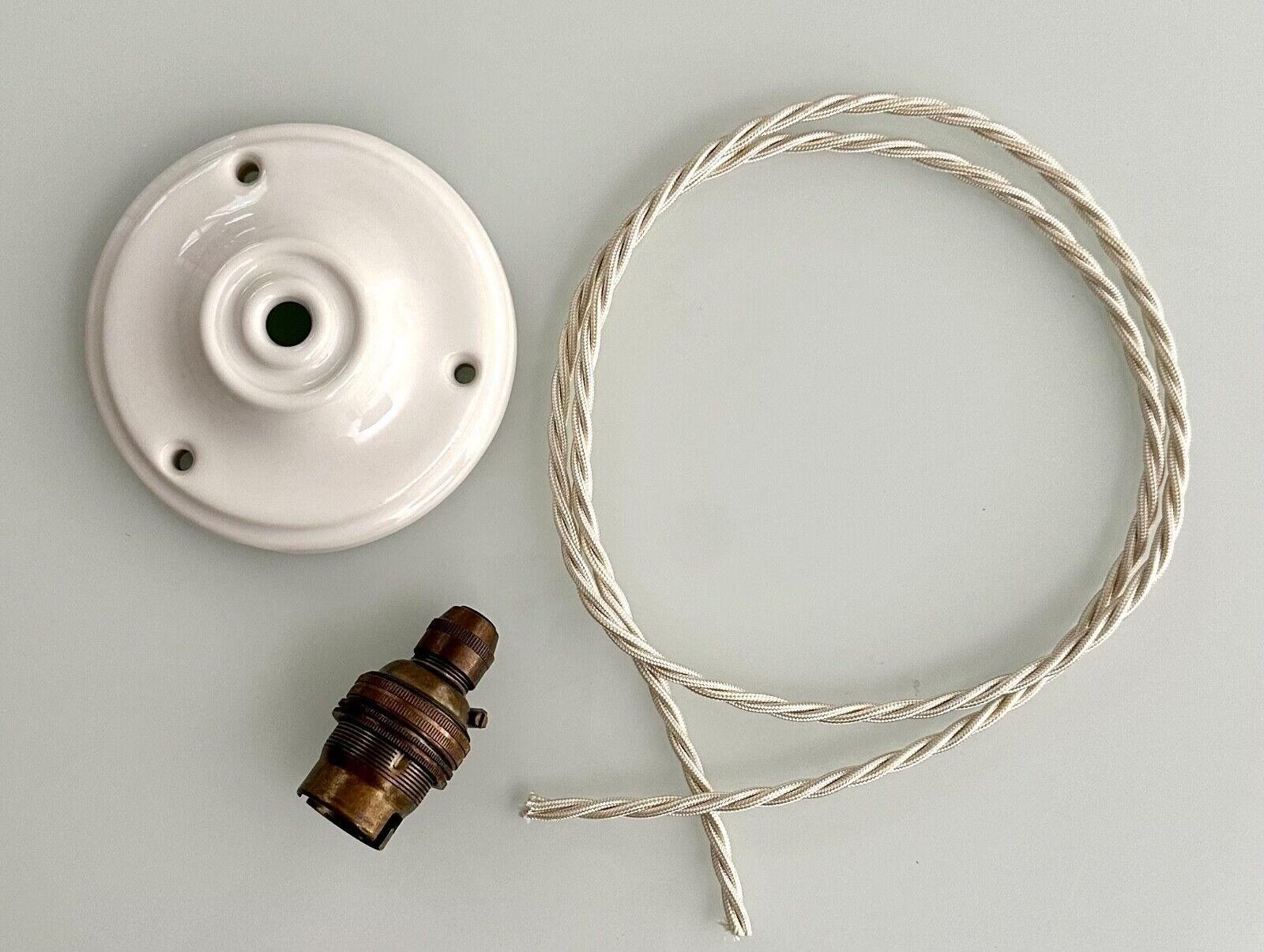

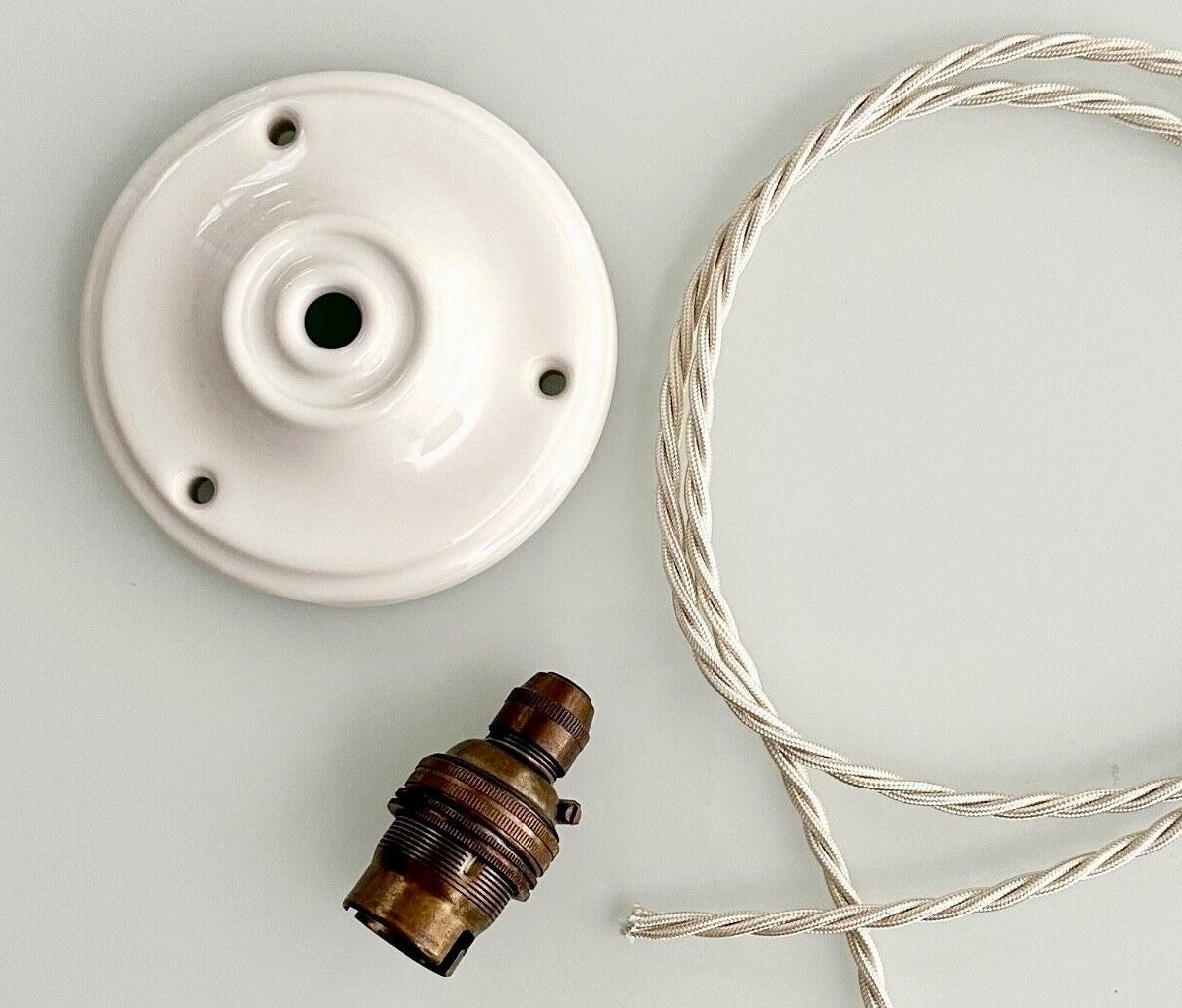

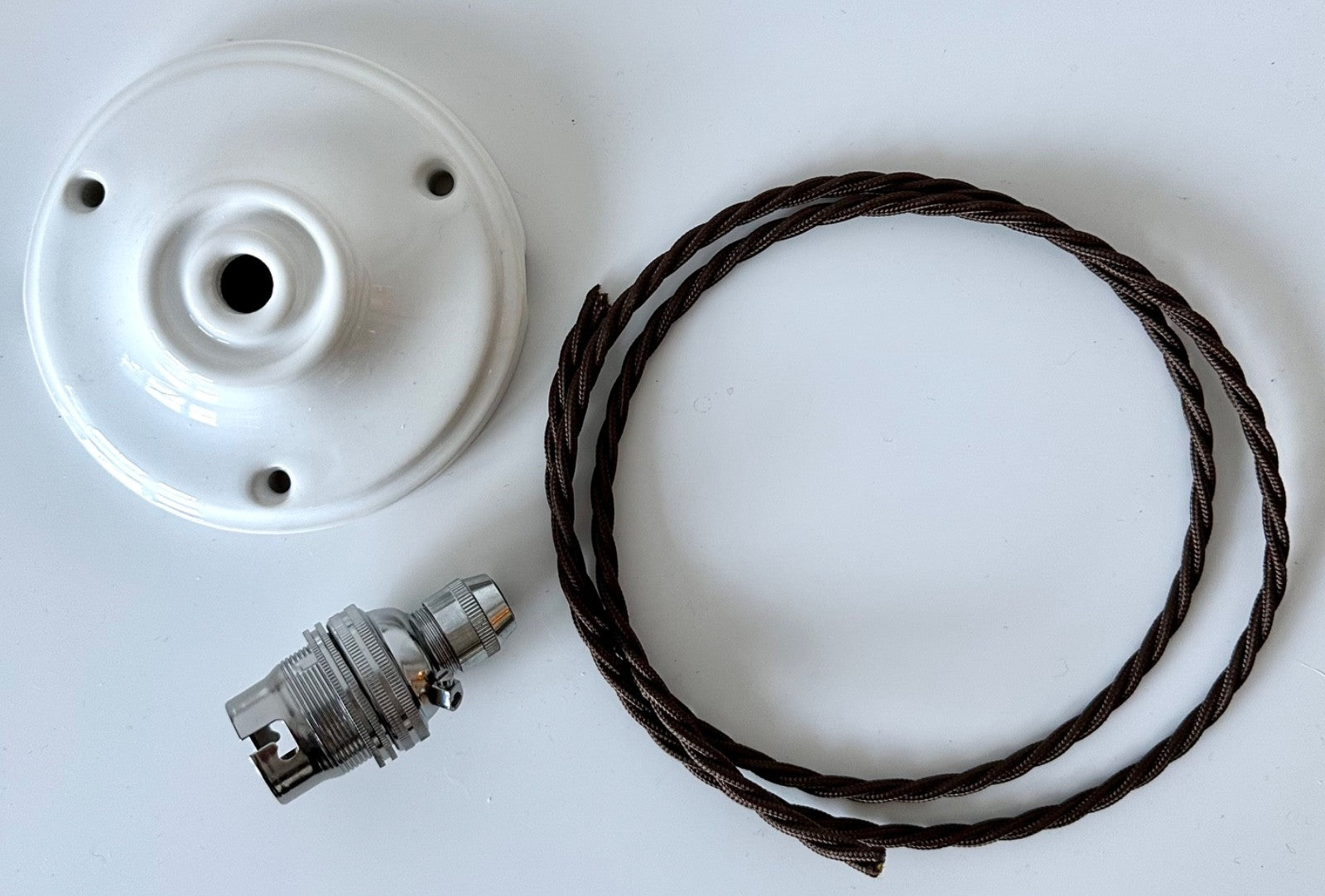

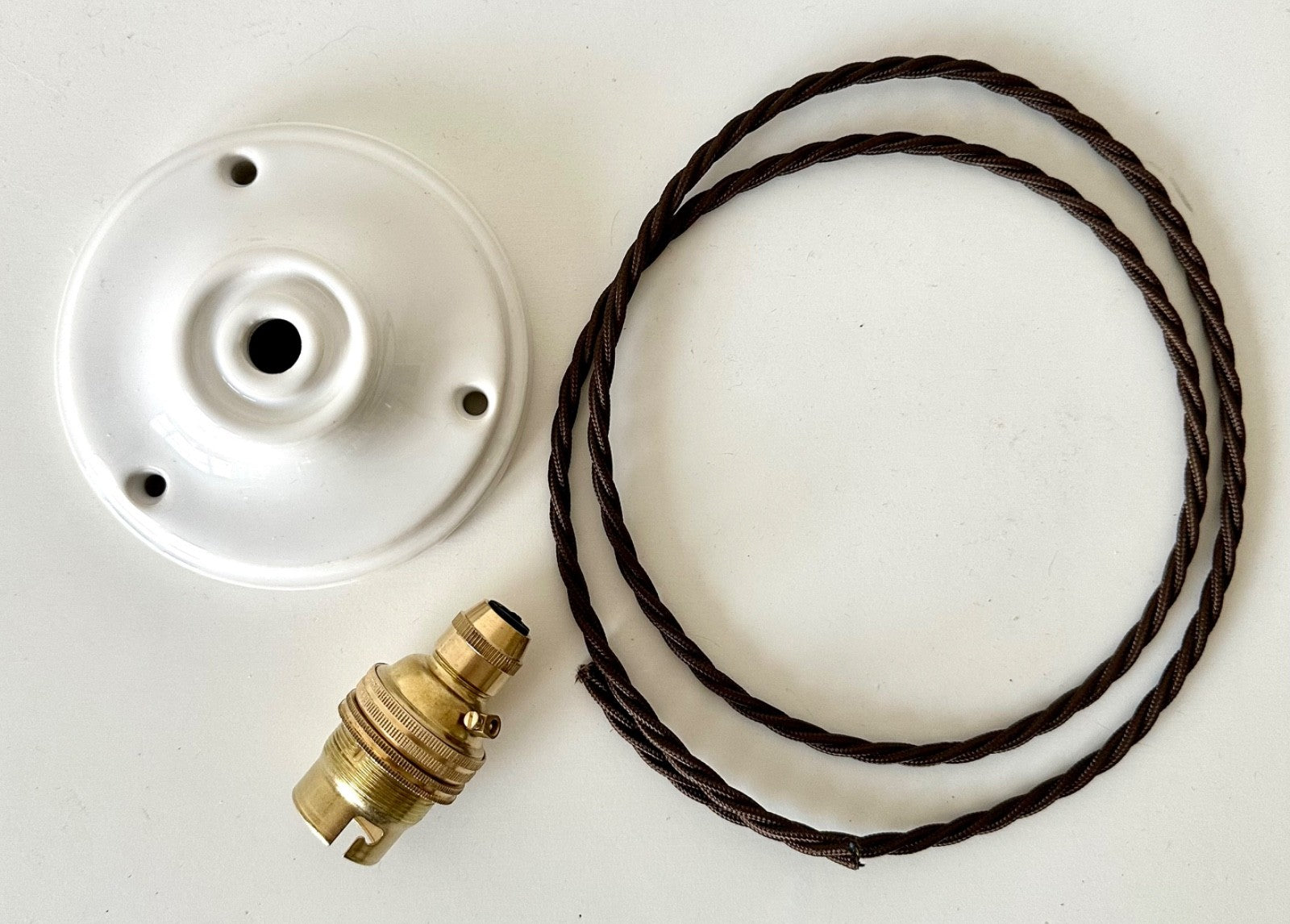

A complete set for wiring up ceiling lights, including a small patterned white ceramic ceiling rose, 3-core fabric twisted flex in either 1, 2 or 3 metre lengths, and one B22 antiqued brass bayonet bulbholder with cord grip. Perfect for vintage style and period pieces of lighting. Both the electric cable and bulbholder are made in Britain and conform to all UK and EU electrical standards (full specifications below).
SPECIFICATIONS:

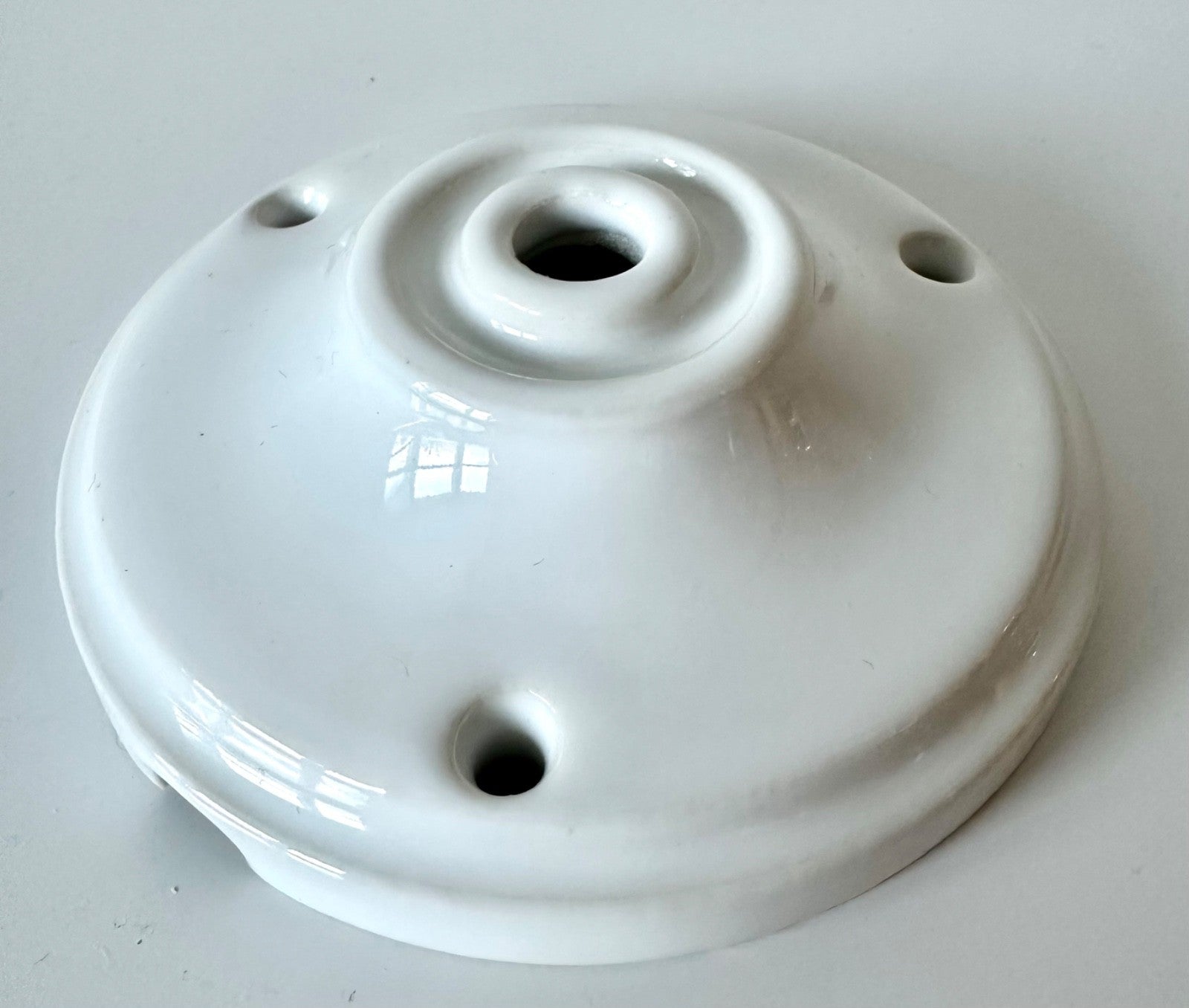

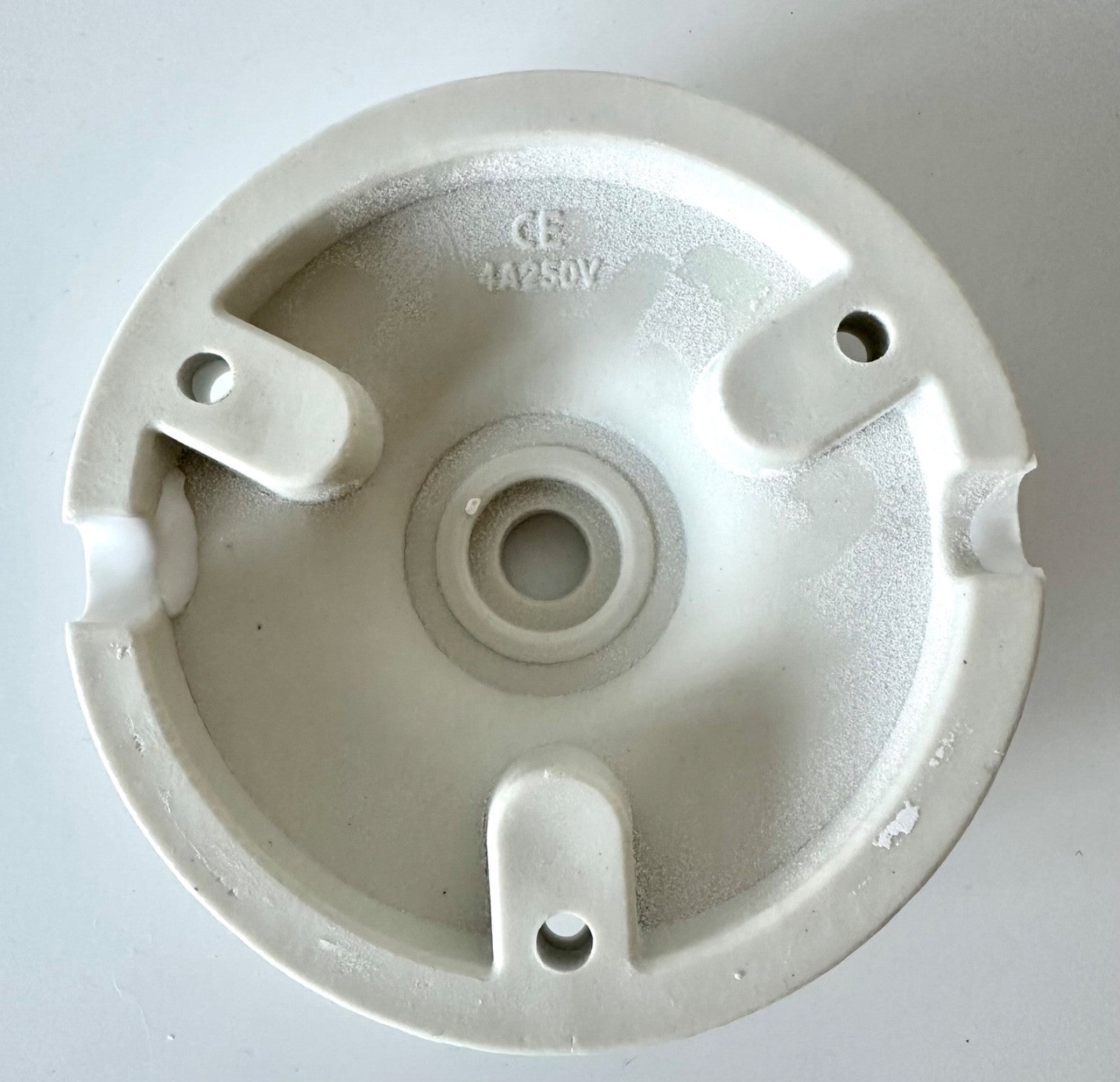

The cable is 0.5 sq mm, meaning it's slightly thinner than most electrical cords. The bulbholder is a bayonet fitting and has shade ring. The porcelain rose measures 10cm (4") across, 3.5cm (1 1/2" high) with a central hole of 11mm.
See our ebay shop for beautiful glass ceiling shades, original pieces of period lighting and more.

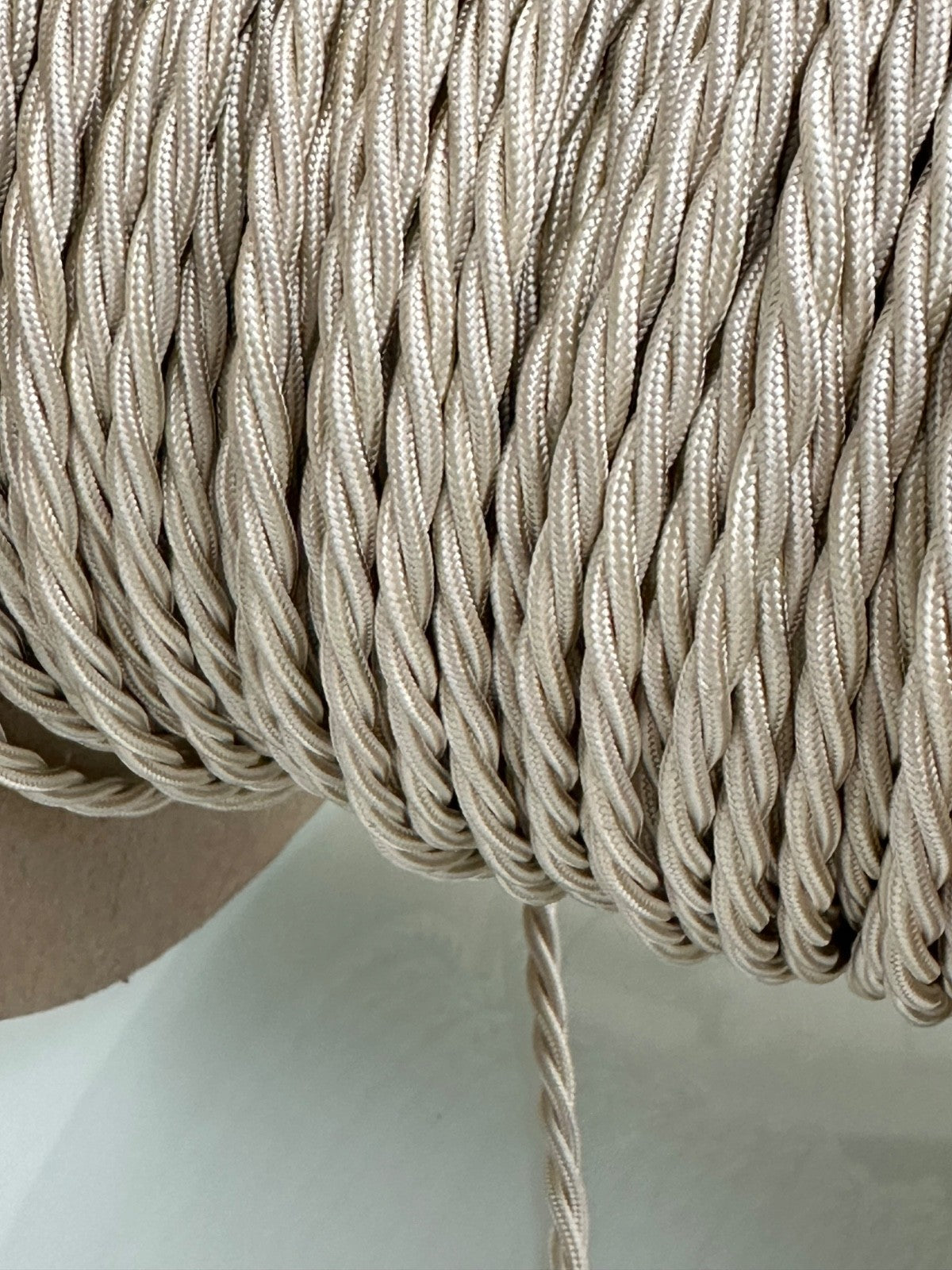

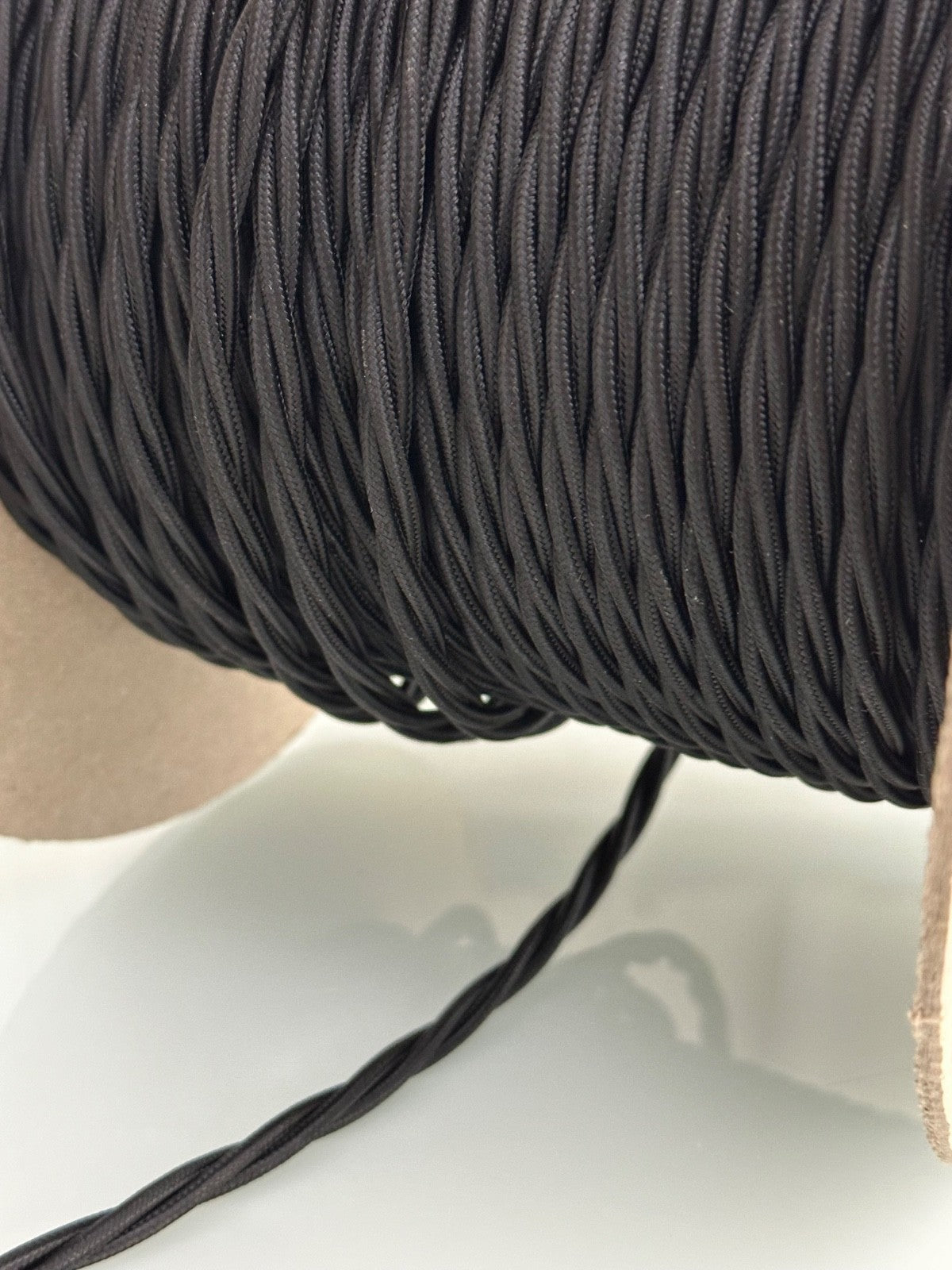

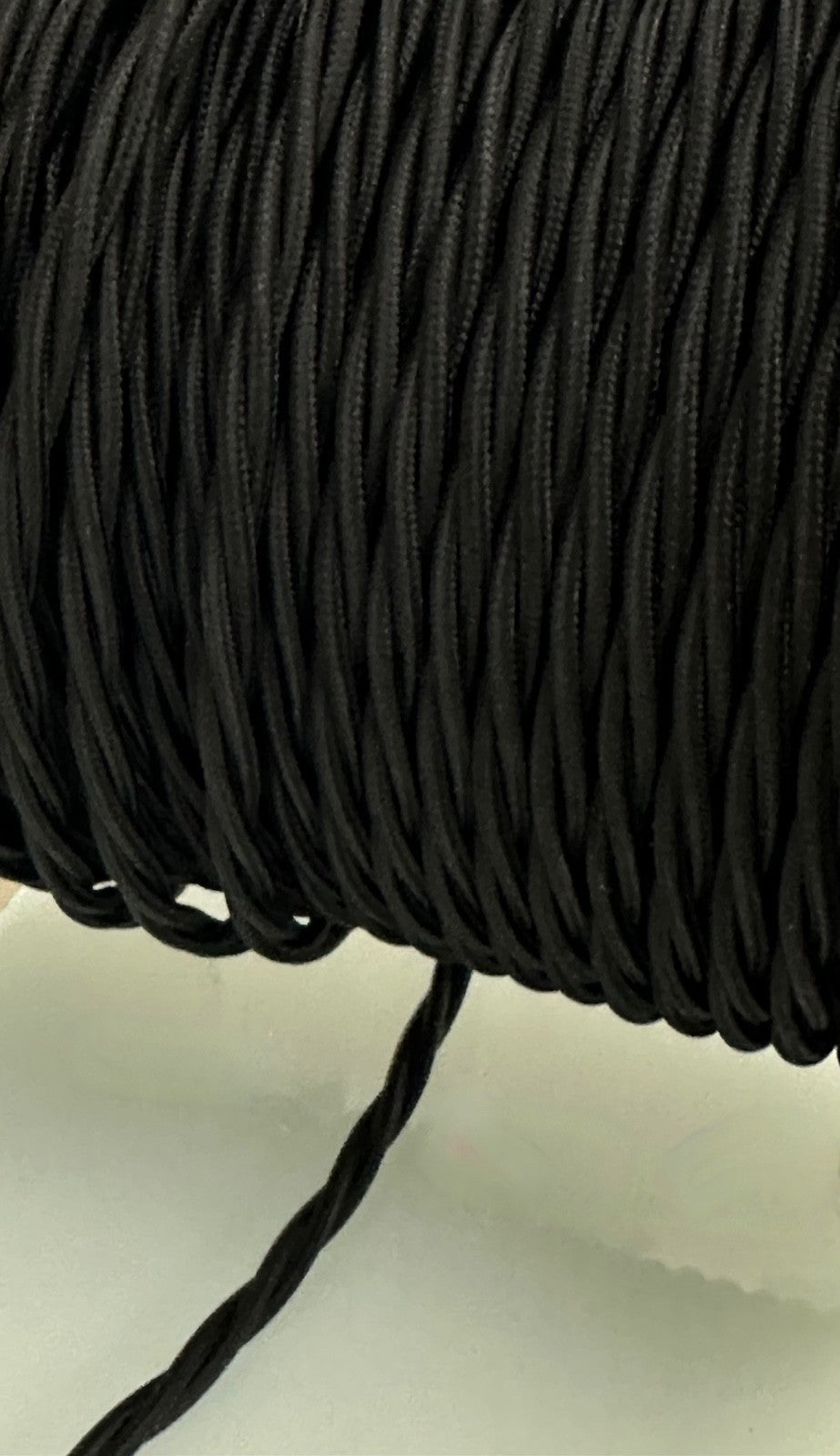

Specifications of the twisted fabric flexPP-303DescriptionValueRated Voltage:300 VacTest Voltage:2500 VacTemperature Range:-20 °C ÷ 90 °CShort Circuit Temperature:160 °CMinimum Bending Radius:10 x Overall DiameterConductor Size:3 x 0.5 mm2Conductor Stranding:19 x 0.183 mmElectrical Resistance :≤ 39.0 [Ω/km]First Insulation Thickness:≥0.25 mmSecond Insulation Thickness:≥0.25 mmOuter Diameter:4.7 ± 0.5 mmProduct Code:BTPP-303
Cable Standards:
Low Voltage European Directive No. 2014/35/UE.
Stranding of Conductor:
Class 5 electrolytic tinned flexible copper conductor, conforming to IEC 60228 requirements.
Inner Insulation:
TI2 type PVC conforming to EN 50363-3 requirements, hardness: (92 + 2) Sh-A.
Outer Insulation:
Transparent TI3 type PVC conforming to EN 50363-3 requirements, hardness:(87 + 2) Sh-A. The outer covering will not be separable from the inner insulation.
Cable Assembly:
The cores are braided in viscose rayon before being twisted together.
Core Identification:
3 Core: Brown , Blue and Green/Yellow

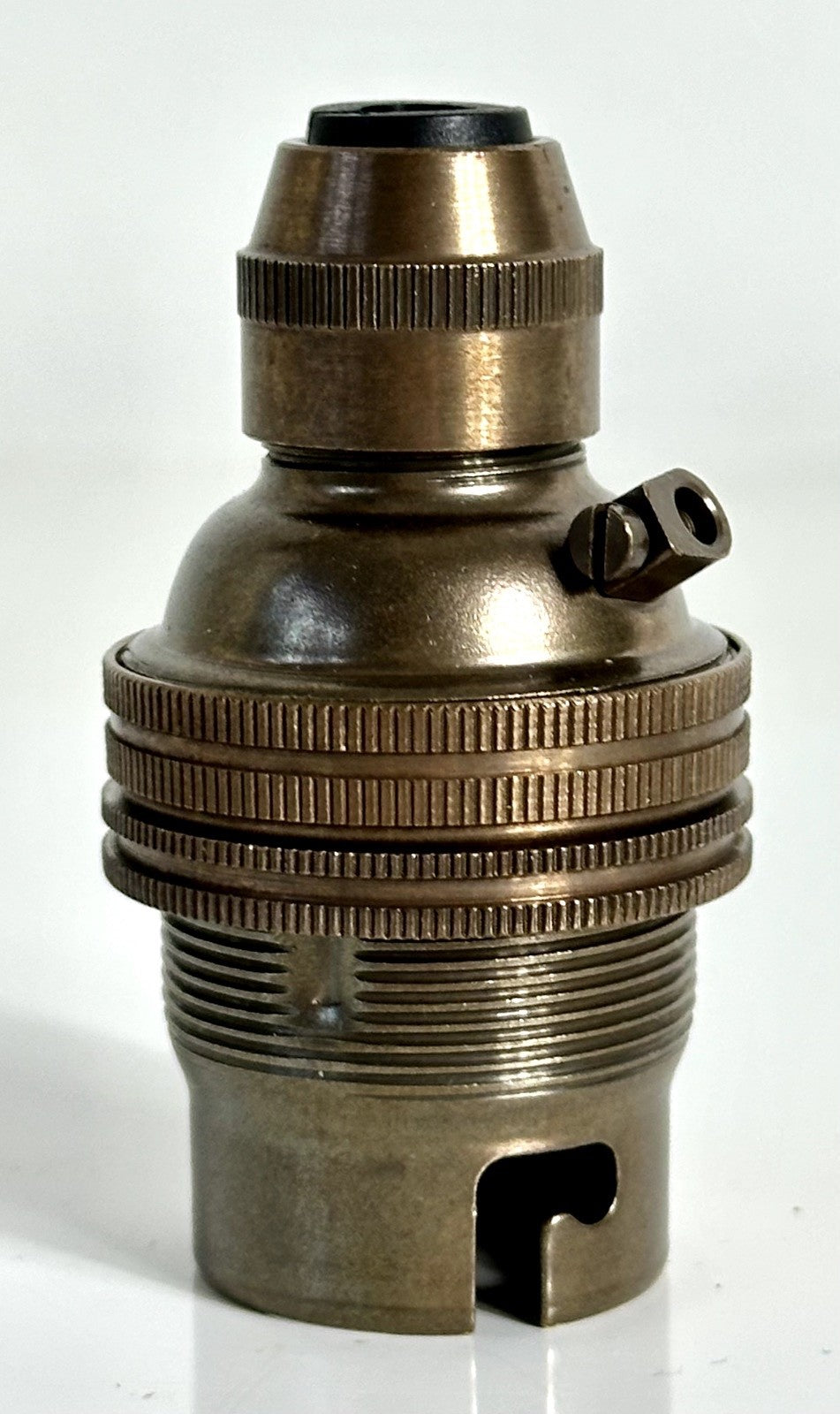

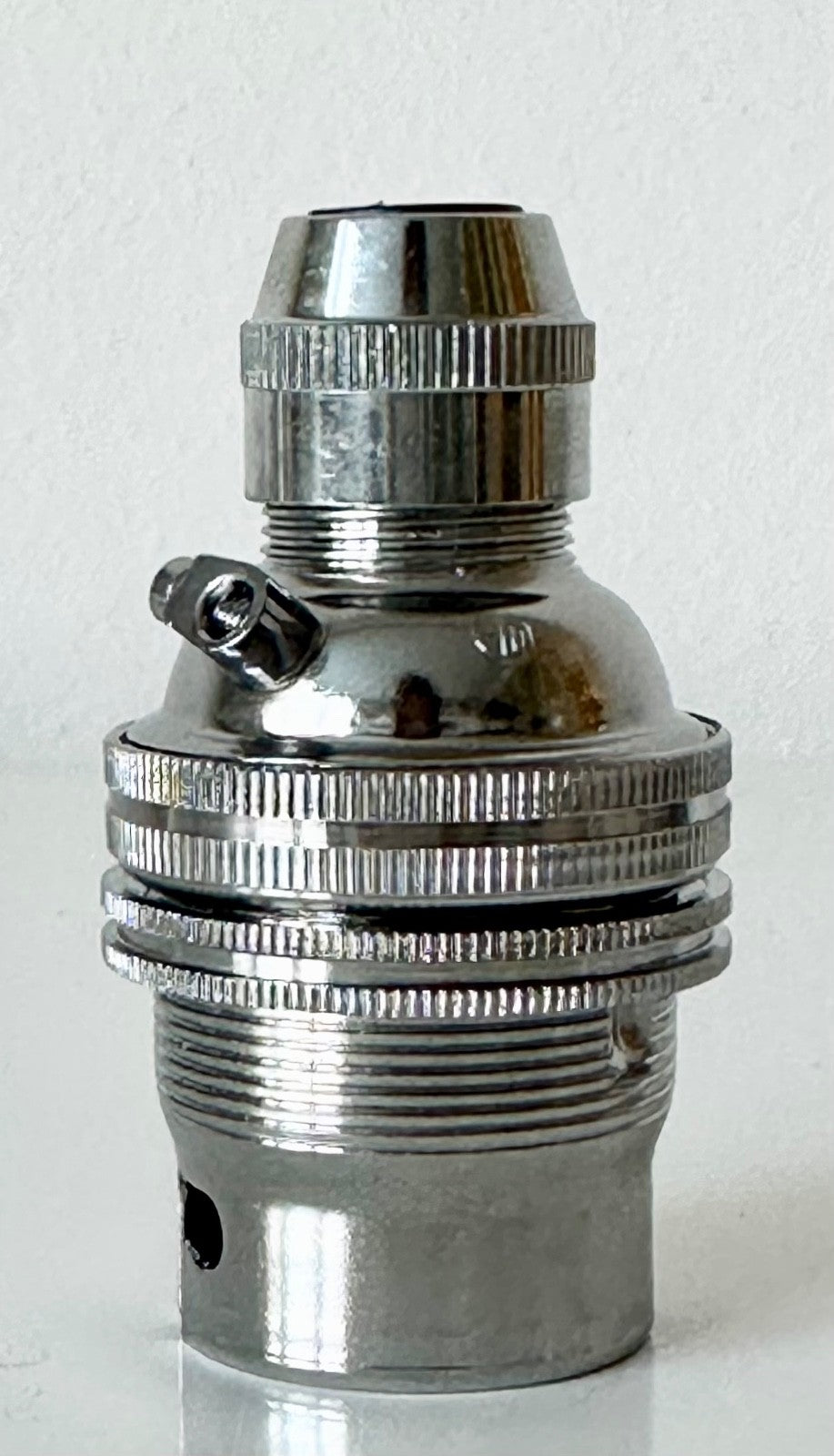

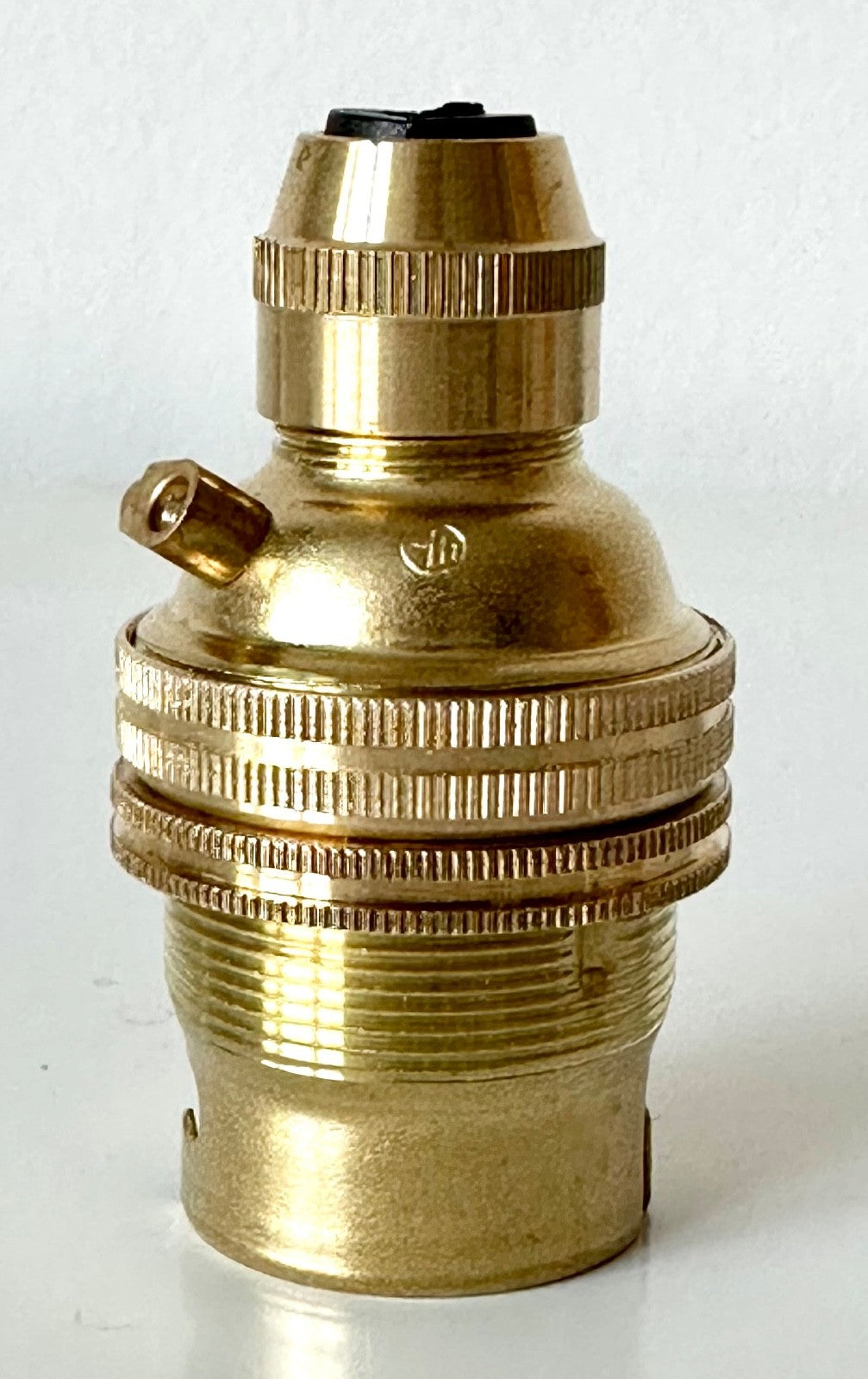

Specifications of the lamp holder (bulbholder) Max Height 58mm
Max Diameter 32mm
Certified to BS EN 61184:2017
