Patterned Ceramic Ceiling Rose Mid Brown Cable Bulbholder Pendant Light Set c

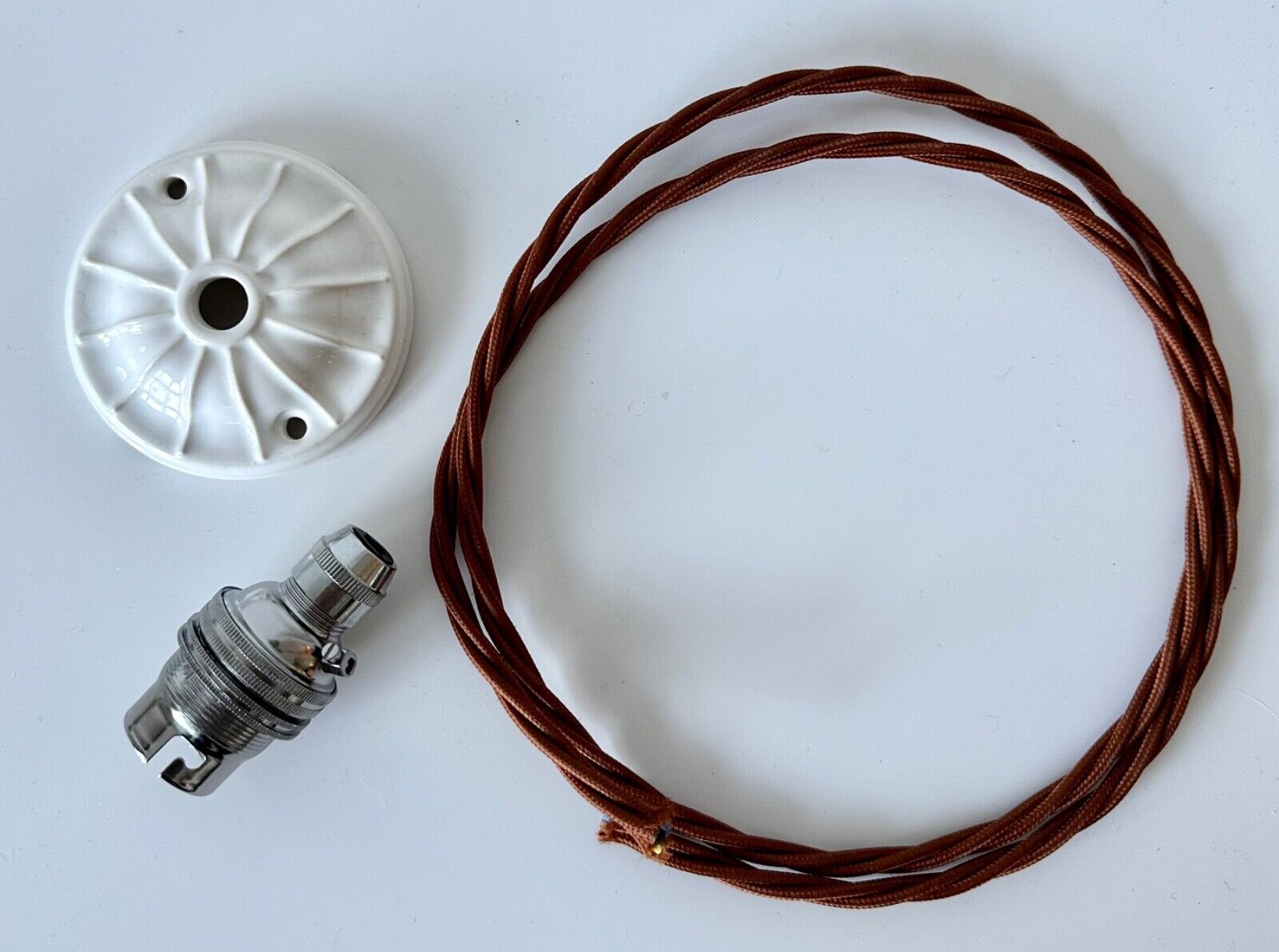

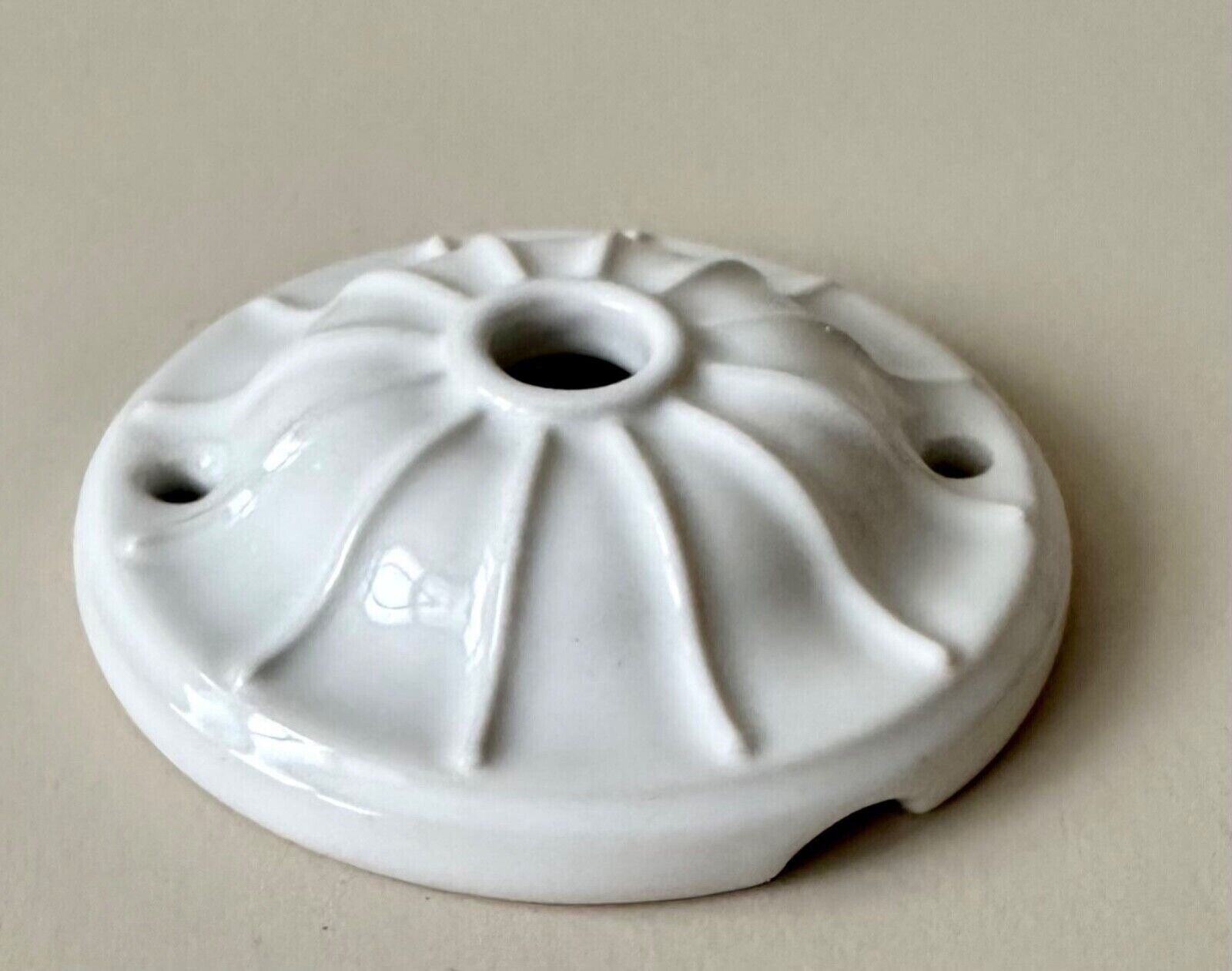

A set for wiring up ceiling lights, including a small patterned white ceramic ceiling rose, one metre of 3-core fabric twisted flex in chestnut brown and one B22 chromed brass bayonet bulbholder with cord grip.  Perfect for vintage style and period pieces of lighting.  Both the electric cable and bulbholder are made in Britain and conform to all UK and EU electrical standards (full specifications below).

The cable is 0.75 sq mm.  The bulbholder is a bayonet fitting and has a shade ring. Measurements are approx 7cm diameter and 2cm high.  The hole for the cord is approx 12mm.

See our ebay shop for beautiful glass ceiling shades, original pieces of period lighting and more.

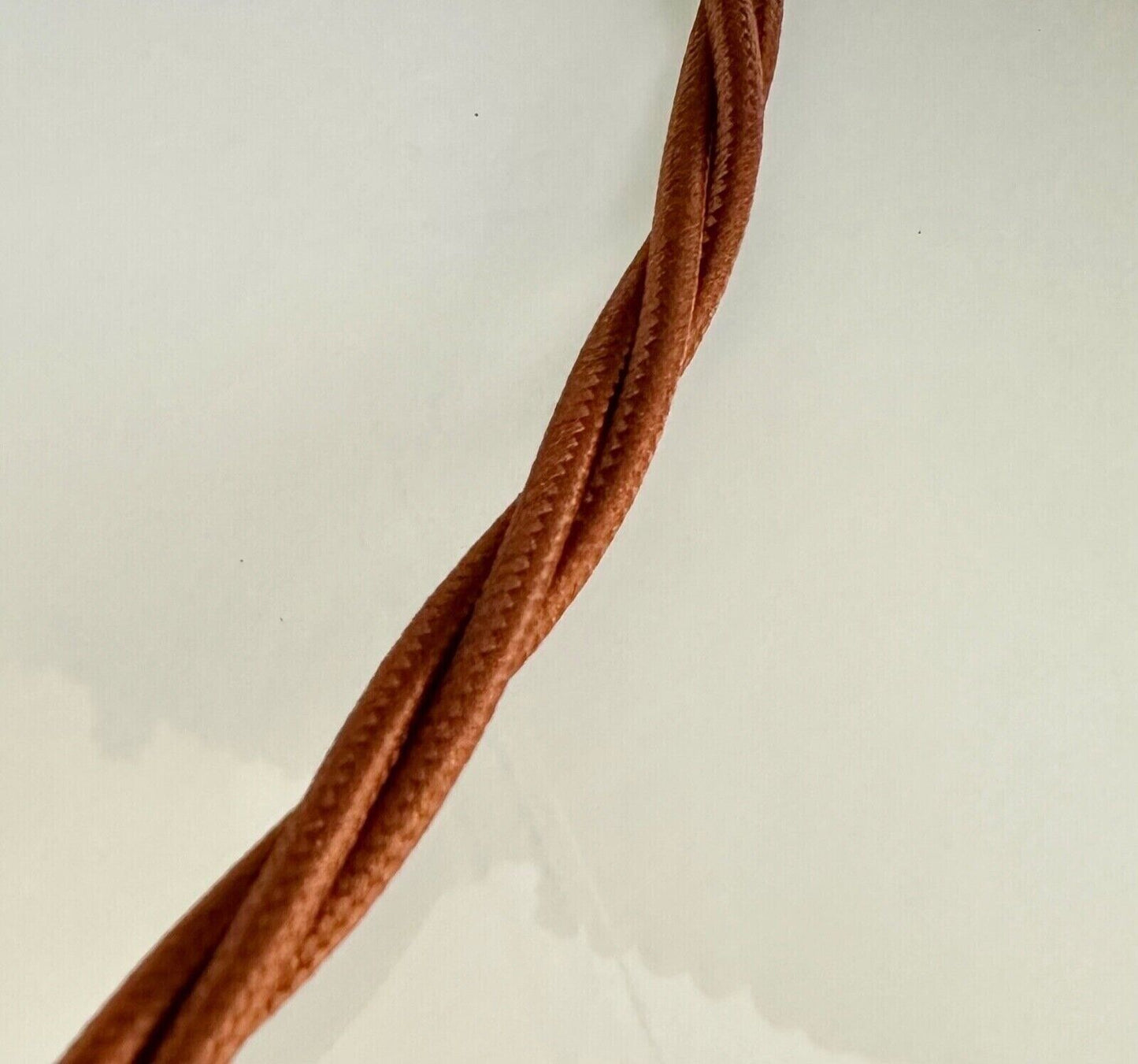

Product Specification of the braided electric cable BTPP-403DescriptionValueRated Voltage:300 VacTest Voltage:2500 VacTemperature Range:-20 °C ÷ 90 °CShort Circuit Temperature:160 °CMinimum Bending Radius:10 x Overall DiameterConductor Size:3 x 0.75 mm2Conductor Stranding:19 x 0.224 mmElectrical Resistance :≤ 26.7 [Ω/km]First Insulation Thickness:≥0.25 mmSecond Insulation Thickness:≥0.30 mmOuter Diameter:5.3 ± 0.5 mmProduct Code:BTPP-403

Cable Standards:

Low Voltage European Directive No. 2014/35/UE.

Stranding of Conductor:

Class 5 electrolytic tinned flexible copper conductor, conforming to IEC 60228 requirements.

Inner Insulation:

TI2 type PVC conforming to EN 50363-3 requirements, hardness: (92 + 2) Sh-A.

Outer Insulation:

Transparent TI3 type PVC conforming to EN 50363-3 requirements, hardness:(87 + 2) Sh-A. The outer covering will not be separable from the inner insulation.

Cable Assembly:

The cores are braided in viscose rayon before being twisted together.

Core Identification:

3 Core: Brown , Blue and Green/Yellow

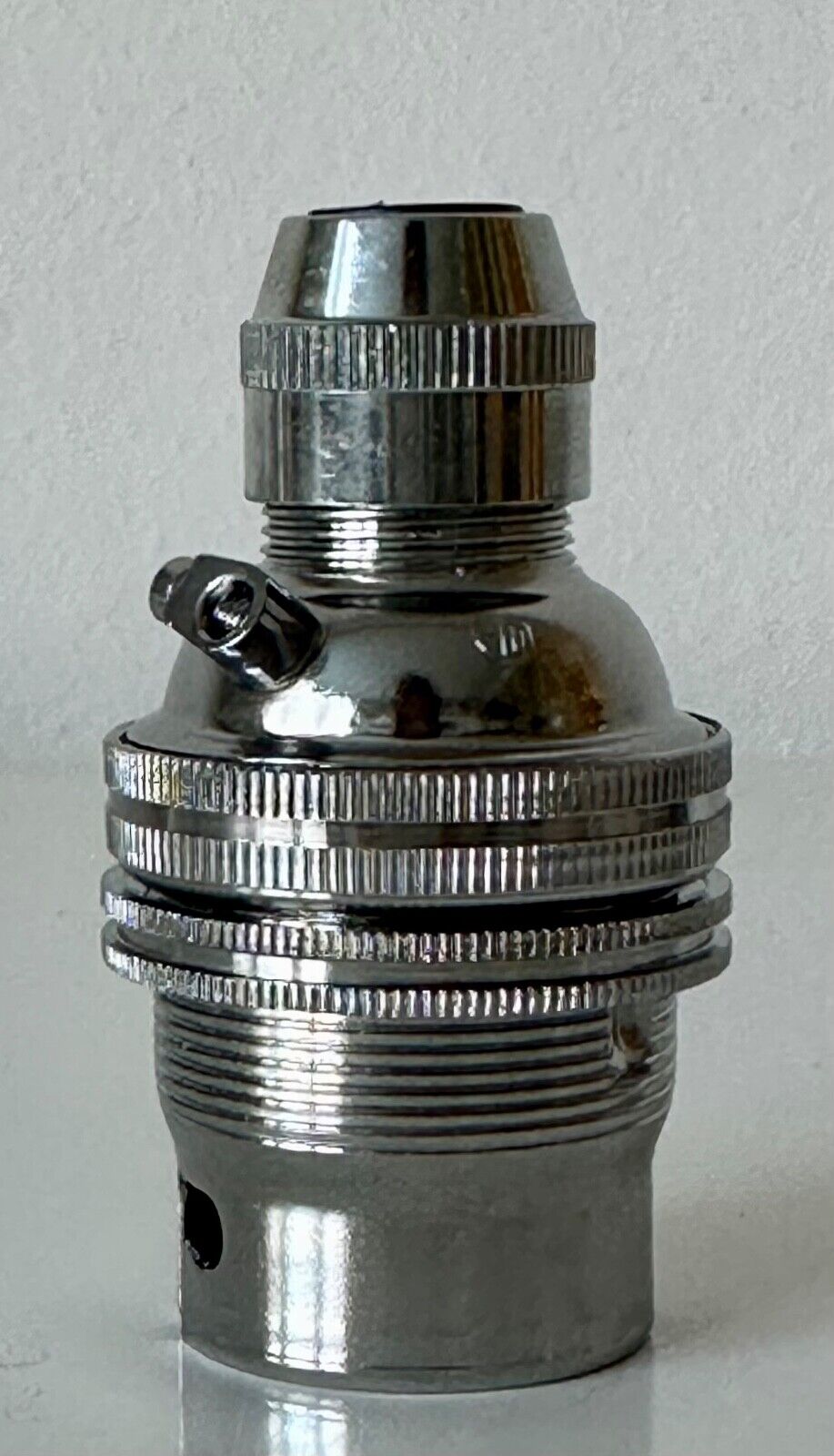

Specifications of the lamp holder (bulbholder) Max Height 58mm

Max Diameter 32mm

Certified to BS EN 61184:2017
